Manufacturer no.:
649396

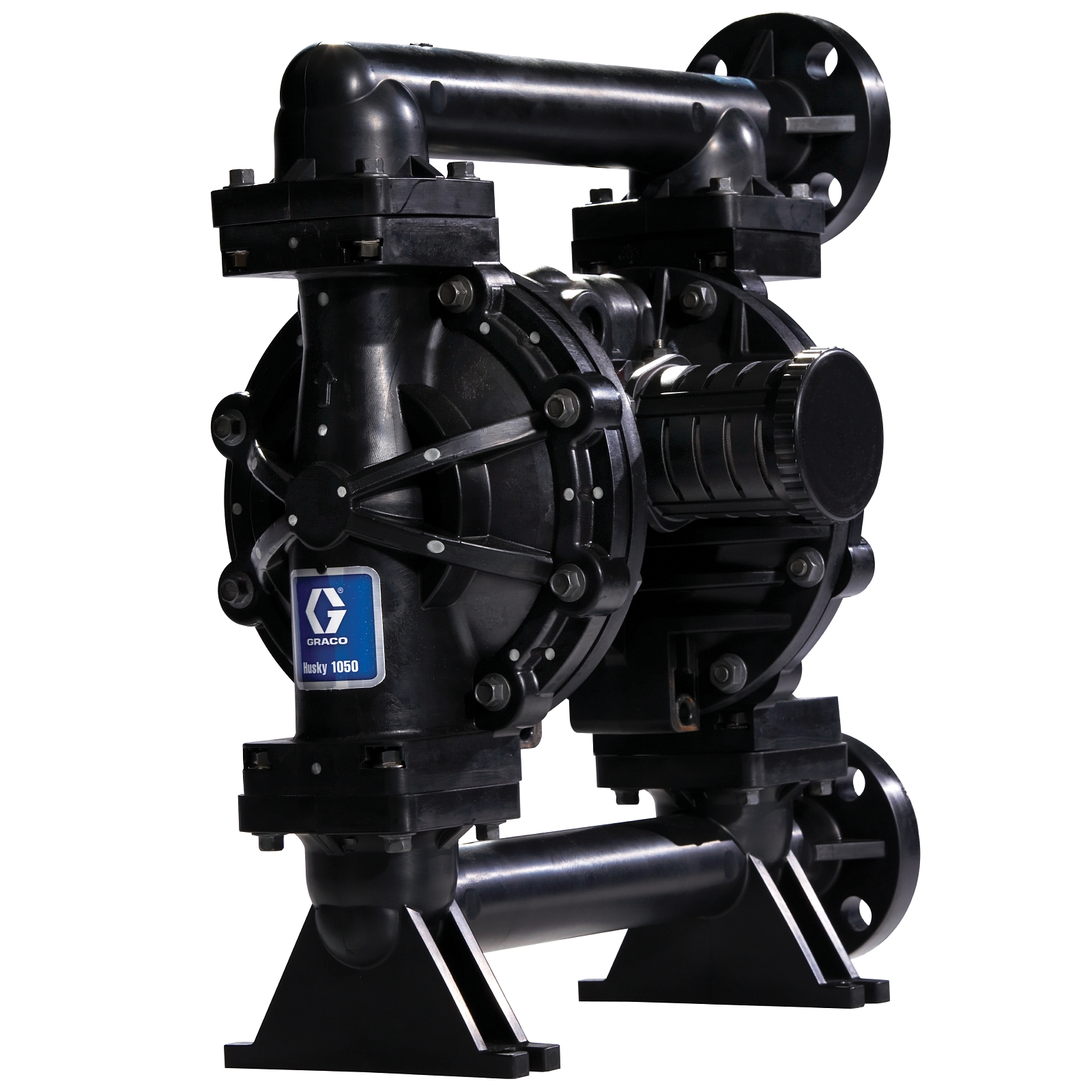

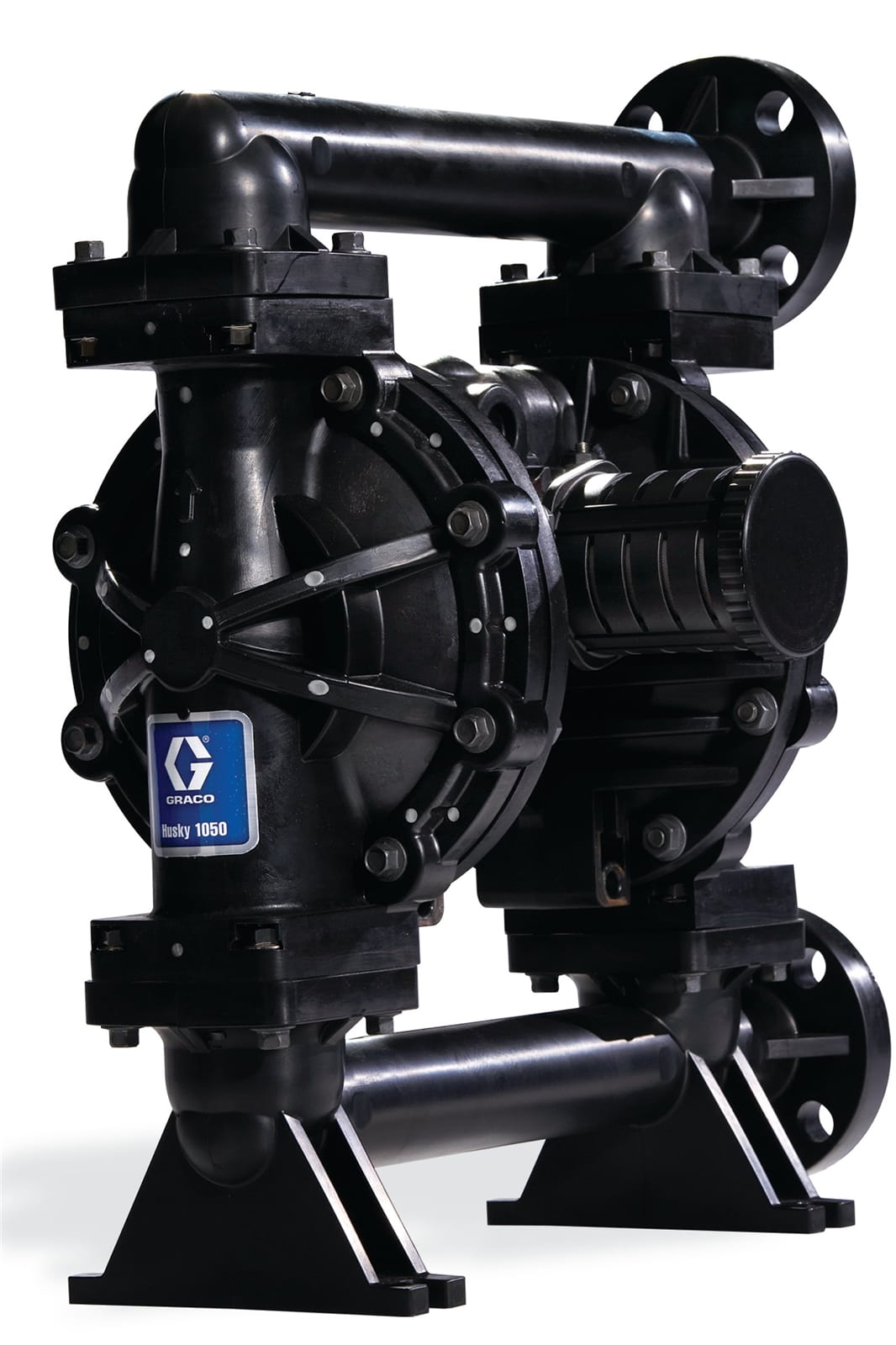

Husky 1050 PVDF pump, end flange, PP centre housing, PVDF seats, SS balls and PTFE diaphragm
€3,602.84*
% €4,003.16* (10% saved)Ready for shipping in 5-8 days
Also interesting
Product information
The Husky 1050 air-operated diaphragm pump features a failure-free, low pulsation air valve that provides a smooth and fast stroke change. The one-piece centre section prevents leaks and reduces maintenance on Husky pumps compared to other diaphragm pumps.
Diaphragm with longer service life
- The diaphragm with its up to 5 times longer service life reduces maintenance and means less downtime
Modular air valve
- Standstill-free operation with low pulsation for smooth, fast stroke changes
Centre section made from one piece
- Prevents leaks and ensures more efficient operation
Four-bolt connection
- Bolted connection provides even seal pressure and ensures leak-free operation
Multiple connections
- Multiple connections for flexible installation
Optional features
- DataTrak™ - dry run protection and material consumption tracking
- Pulse output - cycle counting capability
- Spring-loaded, externally serviceable control valves for faster changeovers and less pulsation
- 30% more efficient than the market leader
- 20% higher material flow compared to Husky 1040
| Air inlet size (inches): | 1/2 |
|---|---|
| Air inlet thread type: | NPT |
| Application: | industry |
| Ball material: | 316 stainless steel |
| Compatible material: | Antifreeze, detergent, engine oil, hydraulic fluid, cutting oil, water - wastewater transfer |
| Connection type: | End flange, ANSI/DIN |
| Distributor O-ring material: | PTFE |
| Distributor configuration: | End opening |
| Gender of the air inlet thread: | Internal thread |
| Material: | PVDF |
| Material in the liquid housing: | PVDF (Kynar) |
| Material of the centre housing: | Polypropylene |
| Material outlet size (cm): | 2.54 |
| Material outlet size (mm): | 25.4 |
| Maximum air pressure (MPa): | 0.86 |
| Maximum air pressure (bar): | 8.6 |
| Maximum air pressure (kPa): | 860 |
| Maximum air pressure (psi): | 125 |
| Maximum delivery rate (L/min): | 189 |
| Maximum material pressure (MPa): | 0.86 |
| Maximum material pressure (bar): | 8.6 |
| Maximum material pressure (kPa): | 860 |
| Maximum material pressure (psi): | 125 |
| Maximum number of cycles (DH/min): | 280 |
| Maximum solids size (cm): | 3,175 |
| Maximum solids size (mm): | 3,175 |
| Membrane, compatible material: | PTFE |
| Membrane material: | PTFE/EPDM 2-part |
| Model: | Husky |
| Seat material: | PVDF (Kynar) |
| Series: | 1050 |
| Size of the exhaust air opening (inches): | 3/4 |
| Size of the material inlet opening (cm): | 2.54 |
| Size of the material inlet opening (inches): | 1 |
| Size of the material inlet opening (mm): | 25.4 |
| Size of the material outlet opening (inches): | 1 |
| Standards met:: | CE |
| Supply voltage: | Air |
| Thread of the exhaust air opening (inside/outside): | Internal thread |
| Thread of the exhaust air opening (type): | NPT |
| Type: | Pneumatic diaphragm pump |
More information
- Product number: 1034824
- Manufacturer: Graco
- EAN: 00633955537378
- Weight: 13.59 kg
Technical details
Operating specifications
| UPC product | 6 3 3955537378 |
|---|---|
| Division | PRO |
| Price Block | 2 62 |
| Country of origin | US |
| Unit | EA |
| Height | 0 CM |
| Length | 0 CM |
| Width | 0 CM |
| Volume | 0 M3 |
| Shipping weight | 13.59 KG |
| HTS code (EU) | 8413508090 |
| HTS code (GB) | 8413508090 |
Technical
| Air exhaust port size (in) | 3/ |
|---|---|
| Air exhaust port thread gender | Female |
| Air inlet size (in) | 1/2 |
| Air inlet thread gender | Female |
| Fluid inlet size (cm) | 2. 54 |
| Fluid inlet size (in) | 1 |
| Fluid inlet size (mm) | 25. 4 |
| Fluid outlet size (cm) | 2. 54 |
| Fluid outlet size (mm) | 25. 4 |
| Maximum air consumption (SCFM) | 67 |
| Maximum air pressure (bar) | 8. 6 |
| Maximum air pressure (kPa) | 860 |
| Maximum air pressure (psi) | 125 |
| Maximum cycle rate (CPM) | 2 80 |
| Maximum flow rate (L/min) | 1 89 |
| Maximum fluid pressure (bar) | 8. 6 |
| Maximum fluid pressure (kPa) | 860 |
| Maximum fluid pressure (psi) | 125 |
| Maximum solid size (cm) | 0. 3175 |
| Maximum solid size (in) | 0. 125 |
| Maximum solid size (mm) | 3. 175 |
| Model | H usky |
| Series | 1 0 50 |
| Maximum fluid pressure (MPa) | 0. 86 |
| Maximum Air Pressure (MPa) | 0. 86 |
| Diaphragm compatible material | PTFE |
