Manufacturer no.:
649002
Husky 1050 PP (NPT) pump, centre flange, PP centre housing, PP seats, BN balls, BN diaphragm and BN diaphragm
€2,204.12*
% €2,449.02* (10% saved)Ready for shipping in 5-8 Werktage
Also interesting
Product information

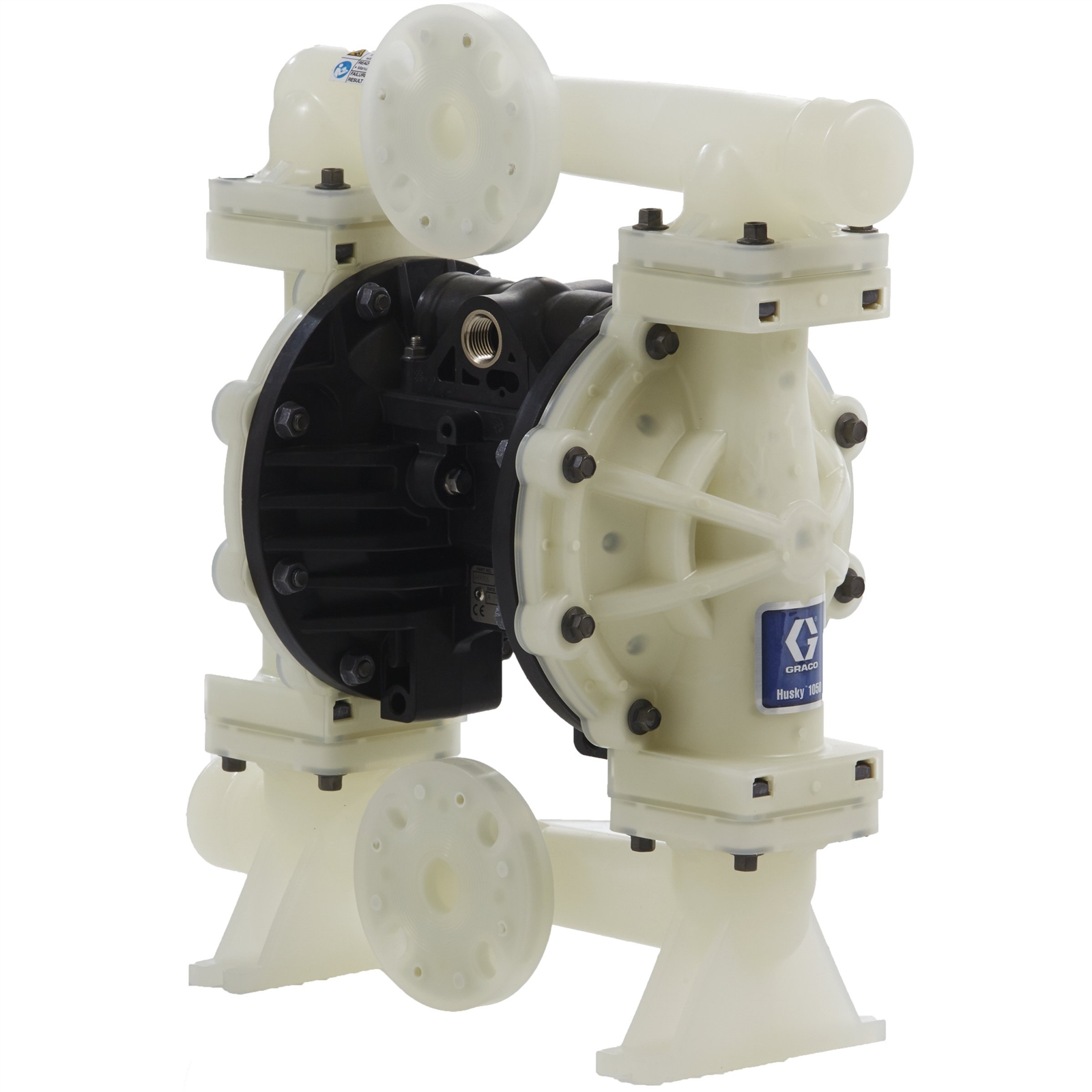

The Husky 1050 air operated diaphragm pump features a fail-safe, low pulsation air valve that provides a smooth and fast stroke change. The one-piece centre section prevents leaks and reduces maintenance on Husky pumps compared to other diaphragm pumps.
Diaphragm with longer service life
- The diaphragm with its up to 5 times longer service life reduces maintenance and means less downtime
Modular air valve
- Standstill-free operation with low pulsation for smooth, fast stroke changes
Centre section made from one piece
- Prevents leaks and ensures more efficient operation
Four-bolt connection
- Bolted connection provides even seal pressure and ensures leak-free operation
Multiple connections
- Multiple connections for flexible installation
Optional features
- DataTrak™ - dry run protection and material consumption tracking
- Pulse output - cycle counting capability
- Spring-loaded, externally serviceable pilot valves for faster changeovers and less pulsation
- 30% more efficient than the market leader
- 20% higher material flow compared to the Husky 1040
| Air inlet size (inches): | 1/2 |
|---|---|
| Air inlet thread type: | NPT |
| Application: | industry |
| Ball material: | Buna-N |
| Compatible material: | Antifreeze, detergent, engine oil, hydraulic fluid, cutting oil, water - wastewater transfer |
| Connection type: | Centre flange, ANSI/DIN |
| Distributor O-ring material: | PTFE |
| Distributor configuration: | Connection in the centre: |
| Gender of the air inlet thread: | Internal thread |
| Material: | Polypropylene |
| Material in the liquid housing: | Polypropylene |
| Material of the centre housing: | Polypropylene |
| Material outlet size (cm): | 2.54 |
| Material outlet size (mm): | 25.4 |
| Maximum air pressure (MPa): | 0.86 |
| Maximum air pressure (bar): | 8.6 |
| Maximum air pressure (kPa): | 860 |
| Maximum air pressure (psi): | 125 |
| Maximum delivery rate (L/min): | 189 |
| Maximum material pressure (MPa): | 0.86 |
| Maximum material pressure (bar): | 8.6 |
| Maximum material pressure (kPa): | 860 |
| Maximum material pressure (psi): | 125 |
| Maximum number of cycles (DH/min): | 280 |
| Maximum operating temperature (°C): | 66 |
| Maximum solids size (cm): | 3,175 |
| Maximum solids size (mm): | 3,175 |
| Membrane, compatible material: | Buna |
| Membrane material: | Buna-N |
| Model: | Husky |
| Seat material: | Polypropylene |
| Series: | 1050 |
| Size of the exhaust air opening (inches): | 3/4 |
| Size of the material inlet opening (cm): | 2.54 |
| Size of the material inlet opening (inches): | 1 |
| Size of the material inlet opening (mm): | 25.4 |
| Size of the material outlet opening (inches): | 1 |
| Standards met:: | CE |
| Supply voltage: | Air |
| Thread of the exhaust air opening (inside/outside): | Internal thread |
| Thread of the exhaust air opening (type): | NPT |
| Type: | Pneumatic diaphragm pump |
More information
- Product number: 1031363
- Manufacturer: Graco
- EAN: 00633955532168
- Weight: 9.966 kg
- Length: 420 mm
- Width: 210 mm
- Height: 190 mm
