Manufacturer no.:
96G227

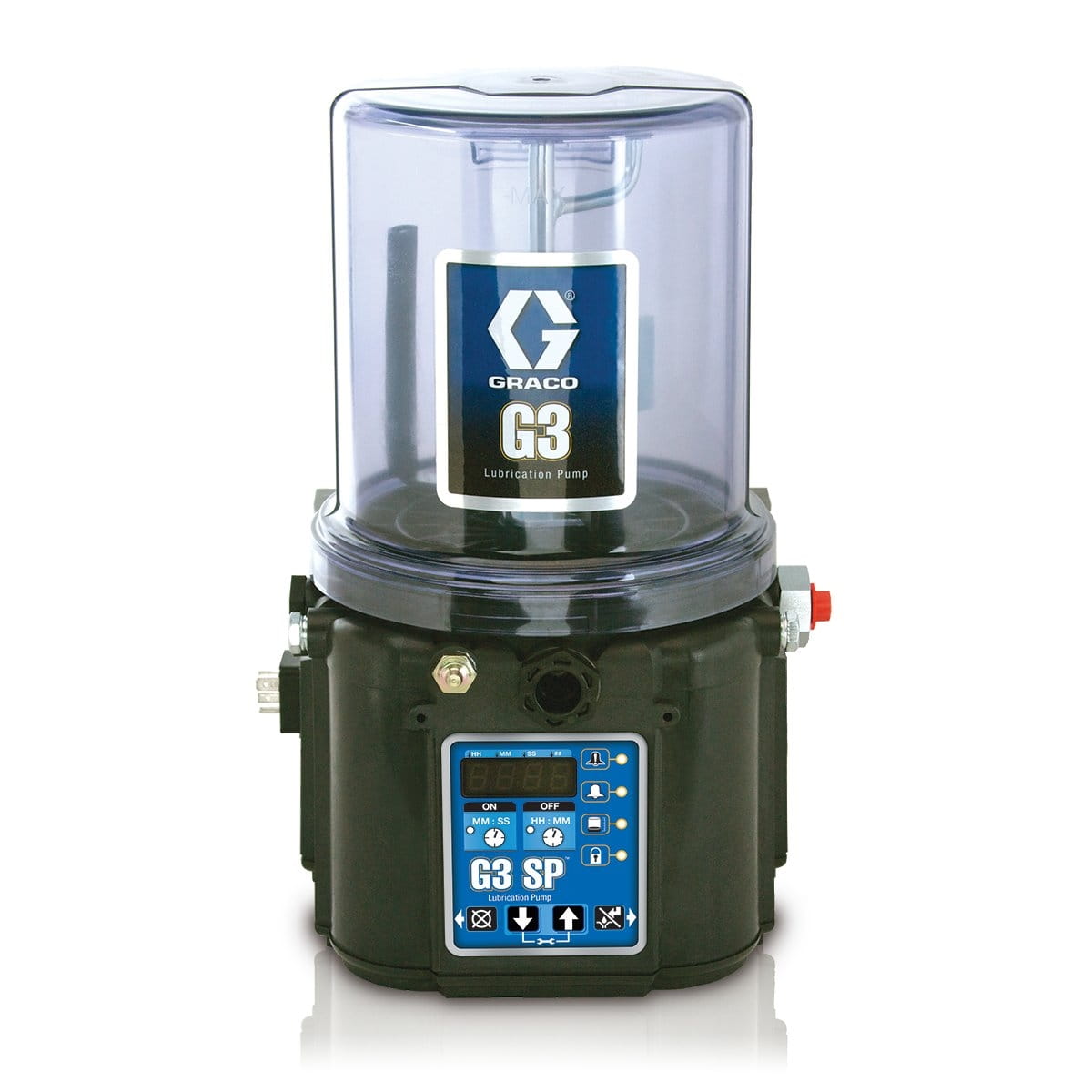

G3™ SP grease lubricator, 90-240 VAC, 2 litres, low level with monitoring, 1 sensor, DIN
€2,225.30*
Ready for shipping in 5-8 days
Also interesting
Product information
Longer service life, lower operating costs and higher productivity with the Graco G3! The G3 SP is equipped with an M12 input for operation with a proximity switch, is very easy to program, and includes an adjustable pump element as standard, with space for two more.
- Built-in controller to monitor cycles and set the time between lubrication events
- Low level control with pre-warning and shutdown.
- Manual operation of the pump triggers the lubrication cycle on request
- Password-protected settings
| Alarm relay, maximum inductive operating voltage (VAC): | 250 |
|---|---|
| Alarm relay, maximum ohmic operating voltage (VAC): | 250 |
| Application: | On-road vehicles, off-road vehicles |
| Compatible dosing system: | Progressive system |
| Compatible material: | Fat |
| Contact power low level (W): | 10 |
| Control options: | Progressive system |
| Current load (A), low level: | 1.2 |
| Energy type: | Electric |
| For use with: | Progressive systems |
| Gender of the material outlet thread: | Internal thread |
| IP dimensioning: | IP69K |
| Includes: | Low level with monitoring |
| Inductive maximum operating current, alarm relay (A): | 1.5 |
| Inductive maximum permissible load, alarm relay: | 10 ?A;10m VDC |
| Inductive maximum rated load, alarm relay (A): | 0.2 |
| Inductive maximum switching capacity, alarm relay: | 25VA;30W |
| Input, maximum switch-off current (mA): | 1.5 |
| Input cycle rate (Hz): | 8 |
| Input impedance: | 1.1 |
| Input load current (mA at 24 VDC): | 22 |
| Low level switching capacity (VDC): | 200 |
| Material outlet size (mm): | 6,3500 |
| Material outlet thread type: | NPSF |
| Maximum NLGI grade: | No. 2 |
| Maximum filling inlet pressure (bar): | 344.7 |
| Maximum filling inlet pressure (kPa): | 34470 |
| Maximum filling inlet pressure (psi): | 5000 |
| Maximum operating pressure (MPa): | 35.1 |
| Maximum operating pressure (kPa): | 35160 |
| Maximum operating pressure (psi): | 5100 |
| Maximum rated residual voltage (V): | 4 |
| Maximum running time (min): | 30 |
| Maximum voltage (V ac): | 264 |
| Minimum voltage (V ac): | 88 |
| Model: | G3 |
| Number of machine cycle counting sensor inputs: | 1 |
| Number of pressure and cycle sensor inputs: | 3 |
| Number of pump elements: | Up to 3 |
| Number of sensor inputs: | 1 |
| Permissible operating pressure (bar): | 351.6 |
| Power connection type: | DIN |
| Relief valve, output voltage (VDC): | 24 |
| Relief valve maximum operating current (A): | 2 |
| Relief valve maximum operating power (W): | 48 |
| Required input switch type: | Normally open |
| Reservoir size (L): | 2 |
| Resistive maximum operating current, alarm relay (A): | 3 |
| Resistive maximum permissible load, alarm relay: | 10µA;10m VDC |
| Resistive maximum rated load, alarm relay (A): | 0.4 |
| Resistive maximum switching capacity, alarm relay: | 50VA;60W |
| Sensor input voltage (VDC): | 24 |
| Series: | SP |
| Size of the material outlet opening (inches): | 0.25 |
| Switching current (A), low level: | 0.5 |
| Total depth (cm): | 9/22 |
| Total depth (mm): | 229 |
| Total height (cm): | 33.7 |
| Total height (mm): | 337 |
| Total width (cm): | 20.3 |
| Total width (mm): | 203 |
| Type: | Electric piston pump |
| Voltage (V): | 90-240VAC |
| Voltage (V ac): | 90-240 |
| Weight (kg): | 6 |
| Wetted material: | Nylon, Trogamid T5004-060, Galvanized Steel, Mild Steel, Alloy Steel, Stainless Steel, Nitrile Rubber, Bronze, Nickel Plated Alnico, Chemically Lubricated Acetal, Aluminum, PTFE, Grillamid |
More information
- Product number: 1030299
- Manufacturer: Graco
- EAN: 00755652420835
- Weight: 6.8 kg
- Length: 350 mm
- Width: 350 mm
- Height: 300 mm
Technical details
Operating specifications
| UPC product | 755652420835 |
|---|---|
| Division | LED |
| Price Block | 125 |
| Country of origin | US |
| Unit | EA |
| Height | 30 CM |
| Length | 35 cm |
| Width | 35 cm |
| Volume | . 037 m³ |
| Shipping weight | 6 .8 KG |
Technical
| Fluid outlet size (mm) | 6. 3500 |
|---|---|
| Fluid outlet thread gender | Female |
| For use with | Series Progressive Systems |
| Includes | Low Level with Controller |
| Maximum NLGI Grade | #2 |
| Maximum working pressure (bar) | 351. 6 |
| Maximum working pressure (kPa) | 3 5160 |
| Maximum working pressure (psi) | 5 1 00 |
| Model | G3 |
| Reservoir Size (gal) | 0. 528 |
| Series | SP |
| Alarm relay inductive maximum operating current (A) | 1. 5 |
| Alarm relay inductive maximum operating voltage (VAC) | 2 50 |
| Alarm relay inductive maximum switching capacity | 25 VA; 30 W |
| Alarm relay inductive minimum permissible load | 10 ?A;10m VDC |
| Alarm relay inductive rated load (A) | 0. 2 |
| Alarm relay resistive maximum operating current (A) | 3 |
| Alarm relay resistive maximum operating voltage (VAC) | 2 50 |
| Alarm relay resistive maximum switching capacity | 50 VA; 60 W |
| Alarm relay resistive minimum permissible load | 10 µA; 10m VDC |
| Alarm relay resistive rated load (A) | 0. 4 |
| Control Options | Series Progressive |
| Input Cycle Rate (Hz) | 8 |
| Input impedance | 1. 1 |
| Input load current (mA @ 24 VDC) | 2 2 |
| Input Maximum Off Current (mA) | 1. 5 |
| Input Maximum Residual Voltage (V) | 4 |
| Input required switch type | Normally Open |
| Input sensor voltage (VDC) | 2 4 |
| IP Rating | IP 6 9K |
| Low Level Carry Current (A) | 1. 2 |
| Low Level Contact Rating (W) | 10 |
| Low Level Switch Rating (VDC) | 2 00 |
| Low level switching current (A) | 0. 5 |
| Maximum fill inlet pressure (bar) | 344. 7 |
| Maximum fill inlet pressure (kPa) | 3 4 470 |
| Maximum fill inlet pressure (psi) | 5 0 00 |
| Maximum run time (min) | 30 |
| Maximum voltage (V ac) | 2 64 |
| Minimum voltage (V ac) | 88 |
| Number of machine count sensor inputs | 1 |
| Number of pressure and cycle sensor inputs | 3 |
| Number of pump elements | Up to 3 |
| Number of sensor inputs | 1 |
| Overall depth (cm) | 22. 9 |
| Overall depth (in) | 9 |
| Overall Depth (mm) | 229 |
| Overall height (cm) | 33. 7 |
| Overall height (in) | 13. 25 |
| Overall height (mm) | 337 |
| Overall width (cm) | 20. 3 |
| Overall width (in) | 8 |
| Overall width (mm) | 2 03 |
| Pump Output with 0 Spacers (cu in/min) | 0. 25 |
| Pump output with 1 spacer (cu in/min) | 0. 18 |
| Pump output with 2 spacers (cu in/min) | 0. 12 |
| Vent valve maximum operating current (A) | 2 |
| Vent valve maximum operating power (W) | 48 |
| Vent valve output voltage (VDC) | 2 4 |
| Weight (kg) | 6 |
| Maximum working pressure (MPa) | 35. 1 |
