Manufacturer no.:
94G038

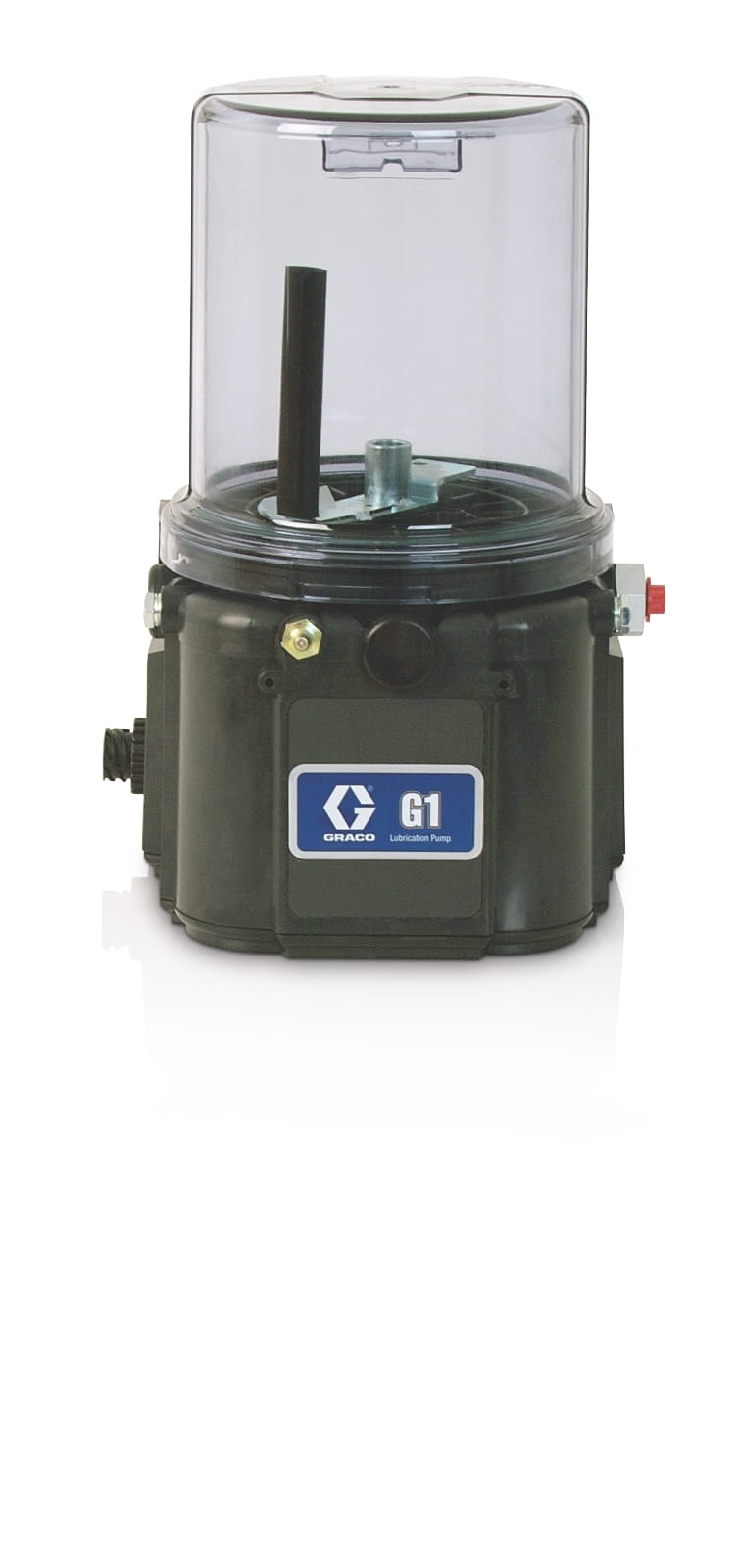

G1™ Standard grease lubricant pump, 24 VDC, 8 litres, DIN, wiper
€963.90*
% €1,071.00* (10% saved)Ready for shipping in 5-8 Werktage
Also interesting
Product information
Simple solution. Convincing results. Use the user-friendly Graco G1 pump when you need a reliable, simple alternative to manual lubrication. Use your equipment intelligently and get more productivity out of it thanks to the G1 series lubricant pumps.
Automatic lubrication for progressive metering systems
- The G1 Standard is a cost-effective solution without an internal control unit.
- 8 litre container
- Connect to 24 VDC
Integrated versatility
- Available with agitator blade and scraper arm to prevent the lubricant from segregating. Optionally with follower plate so that the lubricant always remains level, even at a large installation angle.
Powerful pump
- The G1 has a pump element that reliably delivers lubricant when it is needed.
Material flow guaranteed without interruption
- Using the latest material dynamics, specially shaped inlet channels for lubricant in the pump prevent the formation of zones in which the grease stands for longer and could therefore separate out.
Experience our durable design
- The decoupled drive minimises stress on the motor and pump element.
| Application: | On-road vehicles, off-road vehicles |
|---|---|
| Compatible dosing system: | Progressive system, multi-line system |
| Compatible material: | Fat |
| Control options: | standard |
| Energy type: | Electric |
| For use with: | Progressive systems |
| Gender of the material outlet thread: | Internal thread |
| IP dimensioning: | IP69K |
| Includes: | Wiper arm |
| Material outlet size (cm): | 6,350 |
| Material outlet size (mm): | 6,3500 |
| Material outlet thread type: | NPSF |
| Maximum NLGI grade: | No. 2 |
| Maximum operating pressure (MPa): | 35.1 |
| Maximum operating pressure (kPa): | 35160 |
| Maximum operating pressure (psi): | 5100 |
| Maximum running time (min): | 30 |
| Maximum voltage (V dc): | 32 |
| Minimum voltage (V dc): | 18 |
| Model: | G1 |
| Number of pump elements: | 1 |
| Permissible operating pressure (bar): | 351.6 |
| Power connection type: | DIN |
| Reservoir size (L): | 8 |
| Series: | standard |
| Size of the material outlet opening (inches): | 0.25 |
| Total depth (cm): | 25.4 |
| Total depth (mm): | 254 |
| Total height (cm): | 47 |
| Total height (mm): | 470 |
| Total width (cm): | 23.5 |
| Total width (mm): | 235 |
| Type: | Electric piston pump |
| Voltage (V): | 24VDC |
| Voltage (V dc): | 24 |
| Weight (kg): | 6 |
| Wetted material: | Nylon, Amorphous Polyamide, Galvanized Steel, Mild Steel, Alloy Steel, Stainless Steel, Nitrile Rubber, Bronze, Nickel Plated Alnico, Chemically Lubricated Acetal, Aluminum, PTFE |
More information
- Product number: 1032149
- Manufacturer: Graco
- EAN: 00633955036444
- Weight: 7.03 kg
- Length: 510 mm
- Width: 320 mm
- Height: 270 mm
