Manufacturer no.:
24Z959

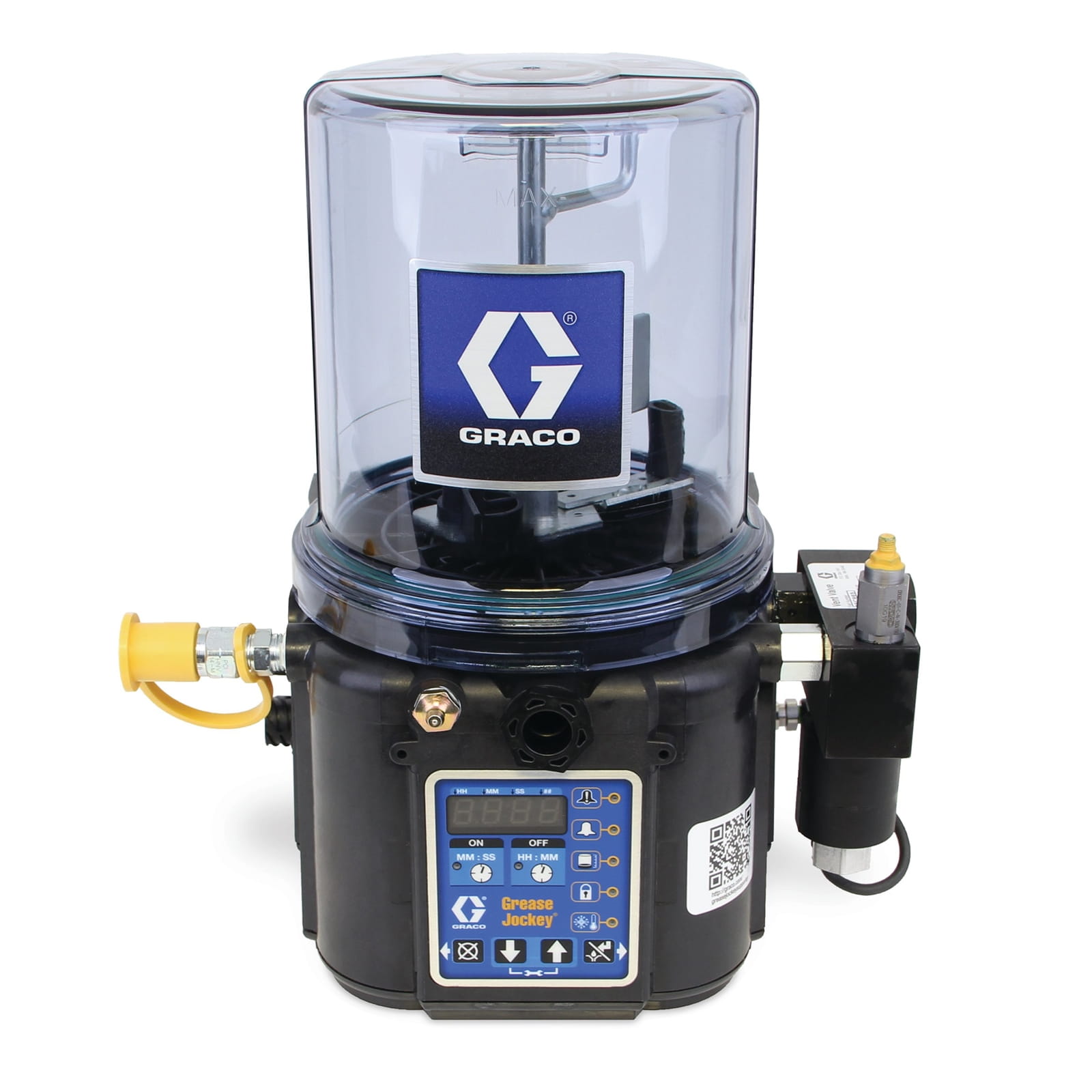

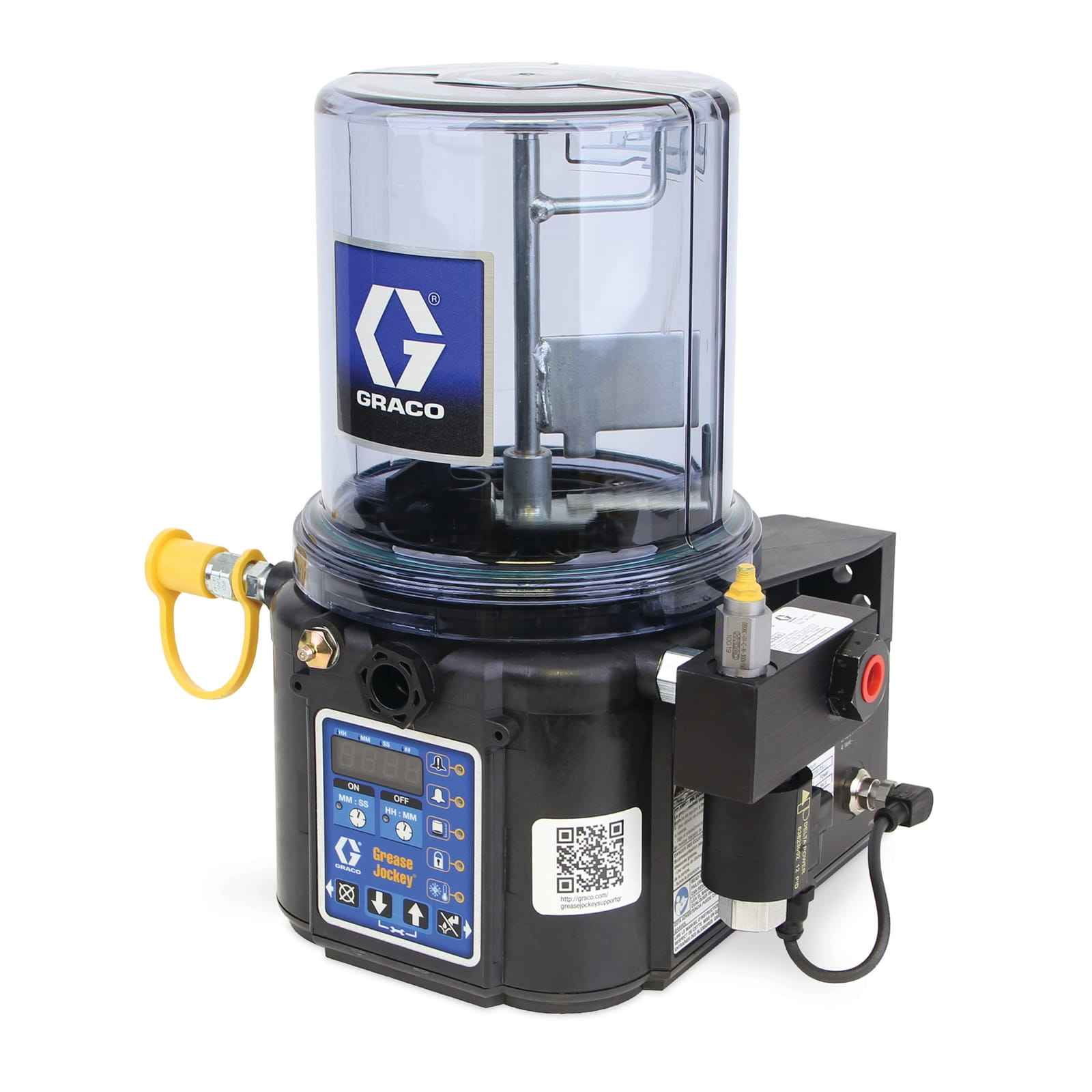

Electric Grease Jockey® pump, 2 litre container, 24 VDC
€1,858.19*
% €2,064.65* (10% saved)Ready for shipping in 5-8 days
Also interesting
Product information
Lubrication is crucial for the top performance of your vehicles. With the Graco Grease Jockey automatic lubrication system, vehicle maintenance becomes much easier. No more hassle of manually lubricating your chassis. Instead, constant lubrication is provided by Graco's Grease Jockey lubrication system.
Advantages:
- Keeps your chassis ready for use even in the toughest conditions.
- Lubricant goes where it's needed, automatically, with little or no waste while the vehicle is in operation
- No wasted time, no missed lubrication points, neither too little nor too much lubrication!
- Systems fit most OEM road vehicles, including fire service special operations vehicles, cement trucks and refuse vehicles
- Proven in the field - some of the largest fleets have been using Grease Jockey for decades!
Robust construction
- U.V., chemical resistant and high impact resistant - rigorously tested and field proven.
NLGI #2 compatible
- NLGI #000 to #2 and 138 bar (2000 psi)
Low level signal
- Warns when there is no grease left.
Electric drive
- 24 VDC (4 amps) power. Protected against motor burnout.
Integrated controls
- Includes adjustable ON/OFF times, PIN code lock and control panel alarms.
| Application: | On-road vehicles, off-road vehicles |
|---|---|
| Compatible material: | Fat |
| Energy type: | Electric |
| IP dimensioning: | IP69K |
| Includes: | Electric Grease Jockey Pump, 2L Container, Relief Valve |
| Material outlet size (cm): | 1.4288 |
| Material outlet size (mm): | 142,875 |
| Material outlet thread type: | SAE ORB |
| Maximum NLGI grade: | No. 2 |
| Maximum operating pressure (MPa): | 13.8 |
| Maximum operating pressure (kPa): | 13790 |
| Maximum operating pressure (psi): | 2000 |
| Maximum running time (min): | 99 |
| Minimum cST degree (cST): | 40 |
| Minimum voltage (V dc): | 18 |
| Model: | Grease jockey |
| Number of pump elements: | 1 |
| Permissible operating pressure (bar): | 137.9 |
| Reservoir size (L): | 2 |
| Size of the material outlet opening (inches): | 0.5625 |
| Type: | Electric piston pump |
| Voltage (V dc): | 24 |
| Weight (kg): | 6 |
More information
- Product number: 1037525
- Manufacturer: Graco
- EAN: 00755652647478
- Weight: 6.894 kg
Technical details
Operating specifications
| UPC product | 755652647478 |
|---|---|
| Division | LED |
| Price Block | 128 |
| Country of origin | US |
| Unit | EA |
| Height | 0 CM |
| Length | 0 CM |
| Width | 0 CM |
| Volume | 0 M3 |
| Shipping weight | 6 .89 KG |
Technical
| Fluid outlet size (mm) | 14. 2875 |
|---|---|
| Includes | Electric grease jockey pump, 2L reservoir, vent valve |
| Maximum NLGI grade | #2 |
| Maximum working pressure (bar) | 137. 9 |
| Maximum working pressure (kPa) | 1 3 790 |
| Maximum working pressure (psi) | 2 0 00 |
| Model | Grease Jockey |
| Reservoir Size (gal) | 0. 528 |
| Voltage (V DC) | 2 4 |
| IP Rating | IP69K |
| Maximum run time (min) | 99 |
| Minimum cST grade (cST) | 40 |
| Minimum voltage (V dc) | 18 |
| Number of pump elements | 1 |
| Weight (kg) | 6 |
| Maximum working pressure (MPa) | 13. 8 |
