Manufacturer no.:
77X000

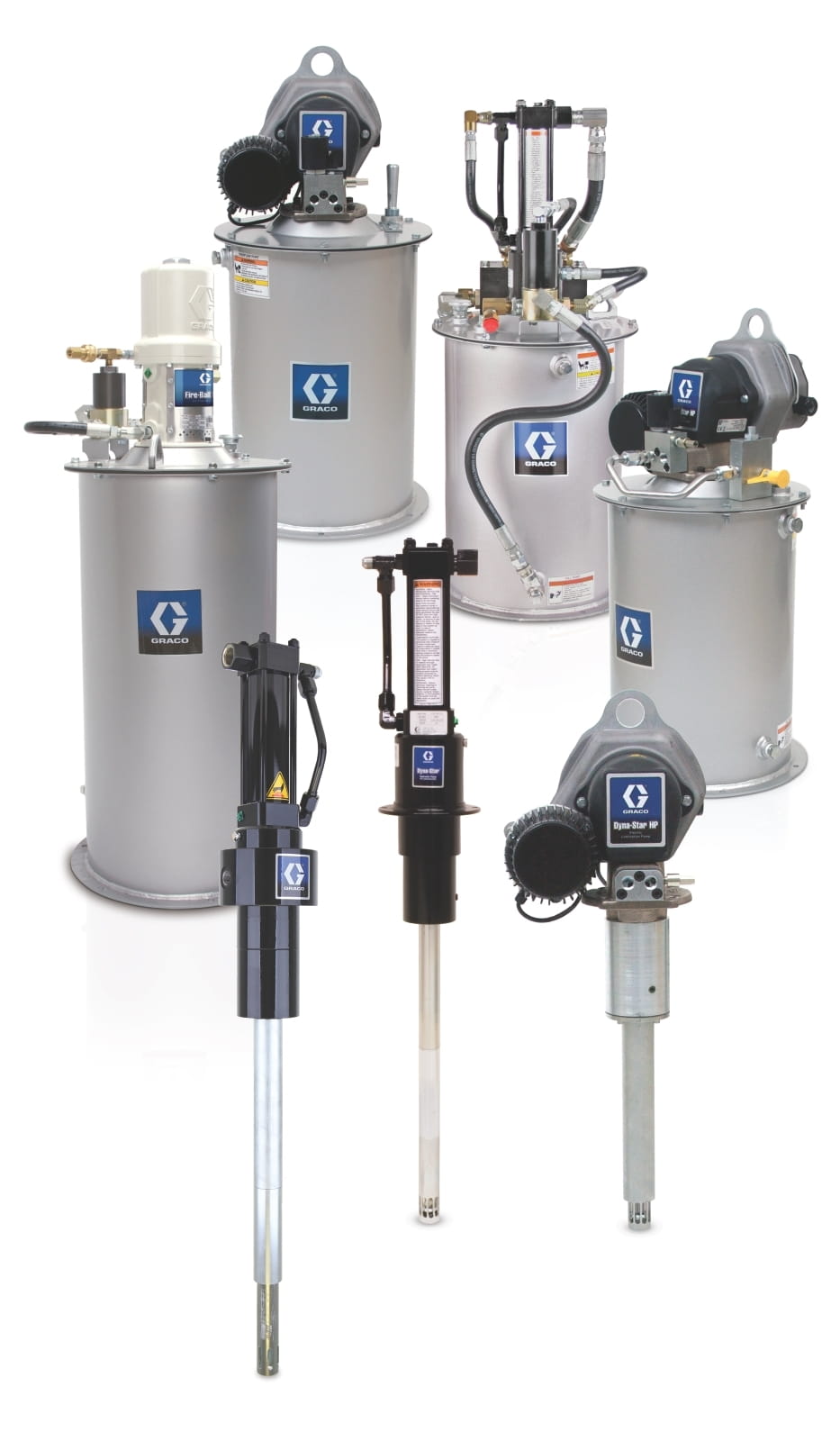

Electric Dyna-Star® HP 24 VDC, self-contained pump for 16 or 27 kg (35 or 60 lb) container
€5,650.60*
% €6,278.44* (10% saved)Ready for shipping in 5-8 days
Also interesting
Product information
Heavy-duty machinery and equipment in the mining industry require fresh lubricant to protect critical pivot points from contamination. An automatic lubrication system from Graco ensures the ongoing lubrication of important components and keeps them operational without costly material downtime.
Electric pumps for heavy-duty automatic lubrication and transfer systems.
- Graco Advantage Drive™ - heavy duty gear drive - lubricated for life
- Pipe-in-pipe venting and fill path - instant conversion of a drum system to a single-line manifold system
- Motor control - speed and AMP control
- Cold weather performance (-40 ºC)
- More efficient seal replacement
| Application: | Machines in manufacturing plants, off-road vehicles |
|---|---|
| Compatible dosing system: | Multi-line system |
| Compatible material: | oil and fat |
| Energy type: | Electric |
| IP dimensioning: | IP69K |
| Includes: | HP pump, 16 or 27 kg (35 or 60 lb) container |
| Material outlet size (mm): | 9.5250 |
| Material outlet thread type: | NPT |
| Maximum operating pressure (MPa): | 34.4 |
| Maximum operating pressure (kPa): | 34400 |
| Maximum operating pressure (psi): | 5000 |
| Maximum voltage (V dc): | 32 |
| Minimum voltage (V dc): | 18 |
| Model: | Dyna Star |
| Permissible operating pressure (bar): | 344 |
| Power connection type: | M23 |
| Size of the material outlet opening (inches): | 0.375 |
| Total height (cm): | 73.7 |
| Total height (mm): | 737 |
| Total width (cm): | 27.9 |
| Total width (mm): | 279 |
| Type: | Electric piston pump |
| Voltage (V dc): | 24 |
| Weight (kg): | 22.68 |
| Wetted material: | Trogamid T5004-060, Grillamid, PTFE, Aluminum, Chemically Lubricated Acetal, Nickel Plated Alnico, Stainless Steel, Mild Steel, Nylon, Bronze, Alloy Steel, Nitrile Rubber, Galvanized Steel |
More information
- Product number: 1038236
- Manufacturer: Graco
- EAN: 00633955191365
- Weight: 29.898 kg
- Length: 1270 mm
- Width: 365 mm
- Height: 350 mm
Technical details
Operating specifications
| UPC product | 633955191365 |
|---|---|
| Division | LED |
| Price Block | 128 |
| Country of origin | US |
| Unit | EA |
| Height | 35 CM |
| Length | 127 cm |
| Width | 36.5 cm |
| Volume | . 162 m³ |
| Shipping weight | 29.9 KG |
Technical
| Fluid outlet size (mm) | 9. 5250 |
|---|---|
| Includes | HP pump, 35 or 60 lb (16 or 27 kg) reservoir |
| Maximum working pressure (bar) | 3 44 |
| Maximum working pressure (kPa) | 3 4400 |
| Maximum working pressure (psi) | 5 0 00 |
| Model | Dyna-Star |
| Voltage (V DC) | 2 4 |
| IP rating | IP69K |
| Maximum voltage (V DC) | 32 |
| Minimum voltage (V DC) | 18 |
| Overall Height (cm) | 73. 7 |
| Overall height (in) | 29 |
| Overall height (mm) | 737 |
| Overall width (cm) | 27. 9 |
| Overall width (in) | 1 1 |
| Overall width (mm) | 2 79 |
| Weight (kg) | 22. 68 |
| Maximum working pressure (MPa) | 34. 4 |
Further manufacturer information
Produktbroschüre
Produkthandbücher
- 332514T, Manual, Dyna-Star HP and HF Pump, Instructions, English (English)
- 332514T, Manual, Dyna-Star HP and HF Pump, Instructions, English (中文)
- 332514T, Manual, Dyna-Star HP and HF Pump, Instructions, English (русский)
- 332514T, Manual, Dyna-Star HP and HF Pump, Instructions, English (日本語)
Verkaufsliteratur
- 340821ENEU-AG Automatic Lubrication Equipment Buyer's Guide (English (UK))
- 340821ENEU-AG Automatic Lubrication Equipment Buyer's Guide (русский)
