Manufacturer no.: CM1U2F

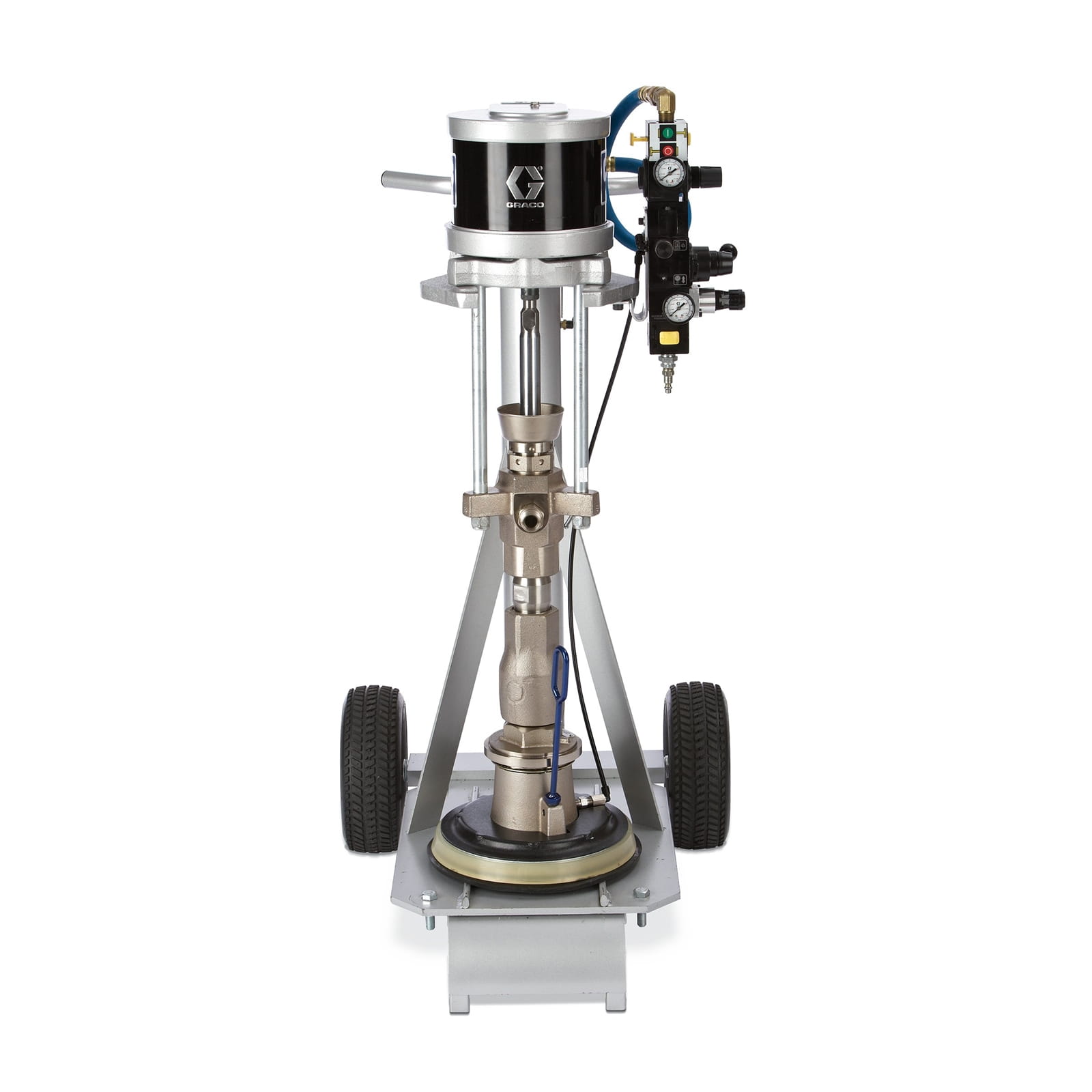

dispenser, Check-Mate, 63:1, S/S, MaxLife, 3" S20c Ram, integrated air control, 20L S/S flat plate, PTFE single wiper

€18,337.66*

% €20,375.18* (10% saved)

Prices include VAT plus shipping costs

€15,409.80*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

Graco feeders reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to dispensing systems.

Bulk unloader for ambient sealants, adhesives, and other medium- to high-viscosity materials.

5-gallon (20-litre) pail sizes offer the same proven technologies as the larger systems, but with smaller NXT air motors.
Graco S20c - Same as S20, but with cart
The industry's first controllers give you instant, critical information at your fingertips
Quick bucket placement
Plate scrapers can be replaced in seconds
Quick-disconnect couplers, turnbuckle mounting and cartridge packings allow pump service without removing the pump from the ram
High-quality, durable parts reduce maintenance time and maximise uptime

Ambient/hot-melting/hot-melting:	Not heated
Application:	Bonding, sealing, sealing, potting, encapsulation, injection molding, spraying, liquid conveying, unloading, underfilling
Container type:	Bucket
Energy type:	Pneumatic
Material container volume (litres):	20
Material follower plate:	Normal steel
Maximum air supply pressure (bar):	8.62
Maximum air supply pressure (kPa):	862
Maximum air supply pressure (kg/cm²):	8.79
Maximum delivery rate (L/min):	6.1
Maximum height (cm):	228.6
Maximum height (m):	2.29
Maximum height (mm):	2286
Maximum inlet air pressure (psi):	125
Maximum material pressure (bar):	434.4
Maximum material pressure (kPa):	43440
Maximum material pressure (psi):	6300
Maximum operating pressure (MPa):	44.1
Maximum operating pressure (kPa):	44100
Maximum operating pressure (psi):	6300
Maximum operating temperature (°C):	49
Minimum height (cm):	165.1
Minimum height (m):	1.65
Minimum height (mm):	1651
Model:	Check Mate
Permissible operating pressure (bar):	441
Pump type:	Suction piston
Series:	S20c
Total depth (cm):	66.1
Total depth (mm):	661
Total width (cm):	56.2
Total width (mm):	562
Transmission ratio of the pump:	63:1
Type:	Feeding device
Wetted material:	Stainless Steel, Acetal, PTFE, UHMWPE, Carbon Filled PTFE, Electroless Nickel Plating, Chrome Plating, MaxLife Plating, Nitrile Rubber, Leather, Polyurethane, Mild Steel, Galvanized, PTFE Coated Nitrile, Polyethylene

More information

Product number: 1035038
Manufacturer: Graco
EAN: 00633955490055
Weight: 141.336 kg

Technical details

Specifications

Operating specifications

UPC product	633955490055
Division	IPD
Price Block	2 22
Country of origin	US
Unit of measurement	EA
Height	0 CM
Length	0 CM
Width	0 CM
Volume	0 M3
Shipping weight	141.336 KG
