Manufacturer no.:
CD3063

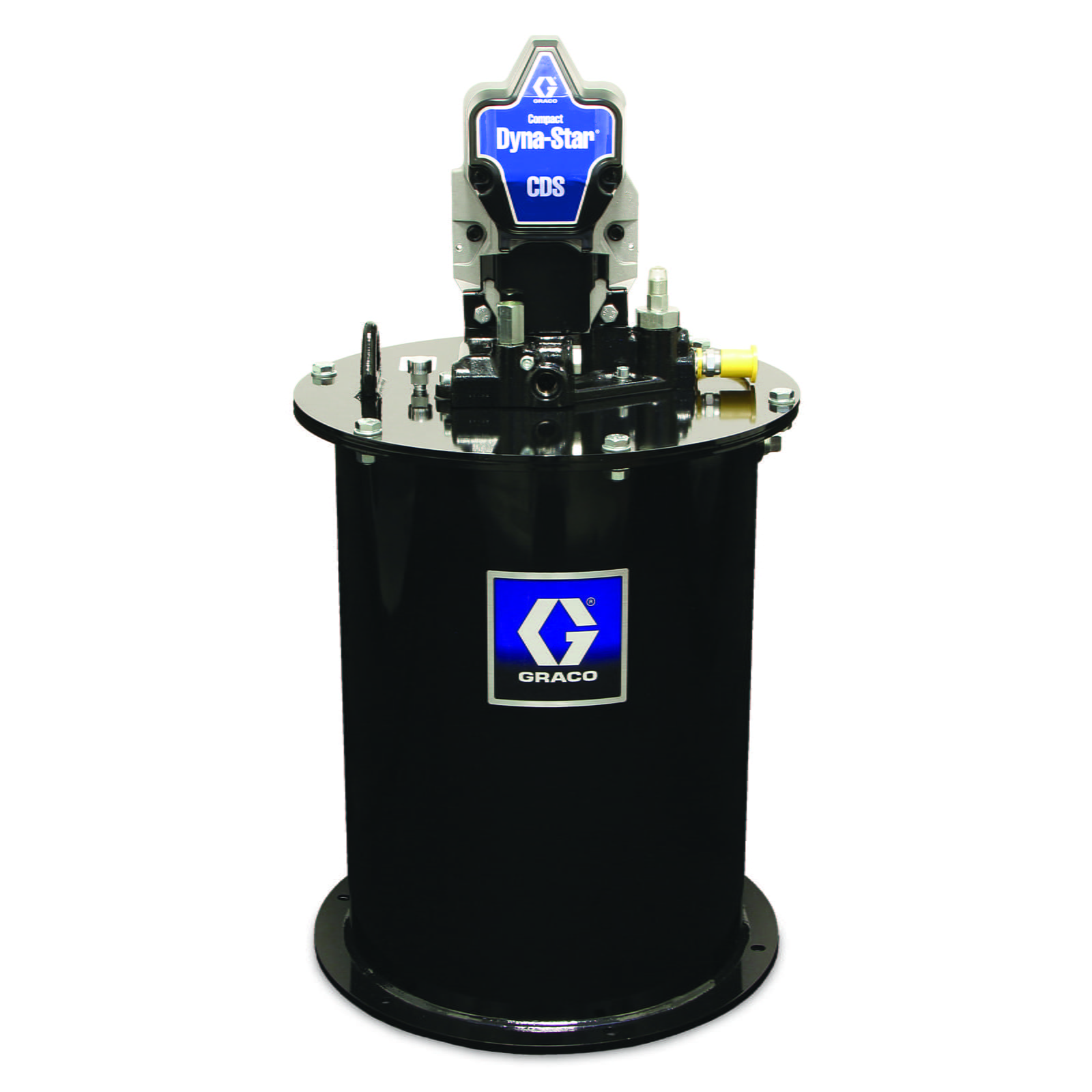

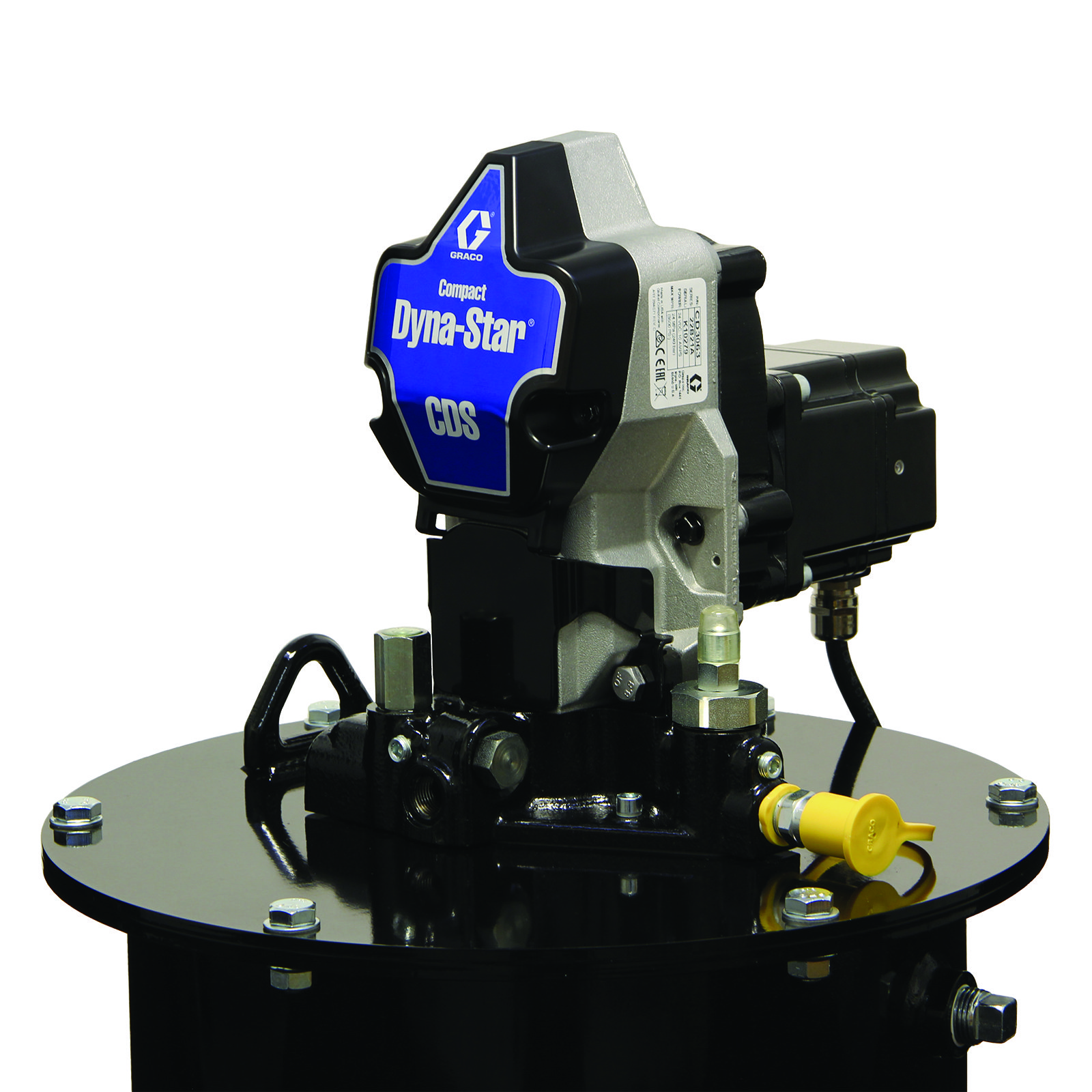

Compact Dyna-Star® 24 VDC grease pump and 27 kg container, follower plate, low level switch, automatic filling switch-off
€6,964.18*
% €8,193.15* (15% saved)Ready for shipping in 5-8 Werktage
Also interesting
Product information
Graco's Compact Dyna-Star (CDS) centralised lubrication solution delivers high capacity, rugged durability and innovative control with a smaller footprint to increase uptime for the most demanding modern earthmoving equipment and users in the harshest environments.
- Compact performance - fits easily into applications with limited space; powerful enough to maintain demanding lubrication intervals.

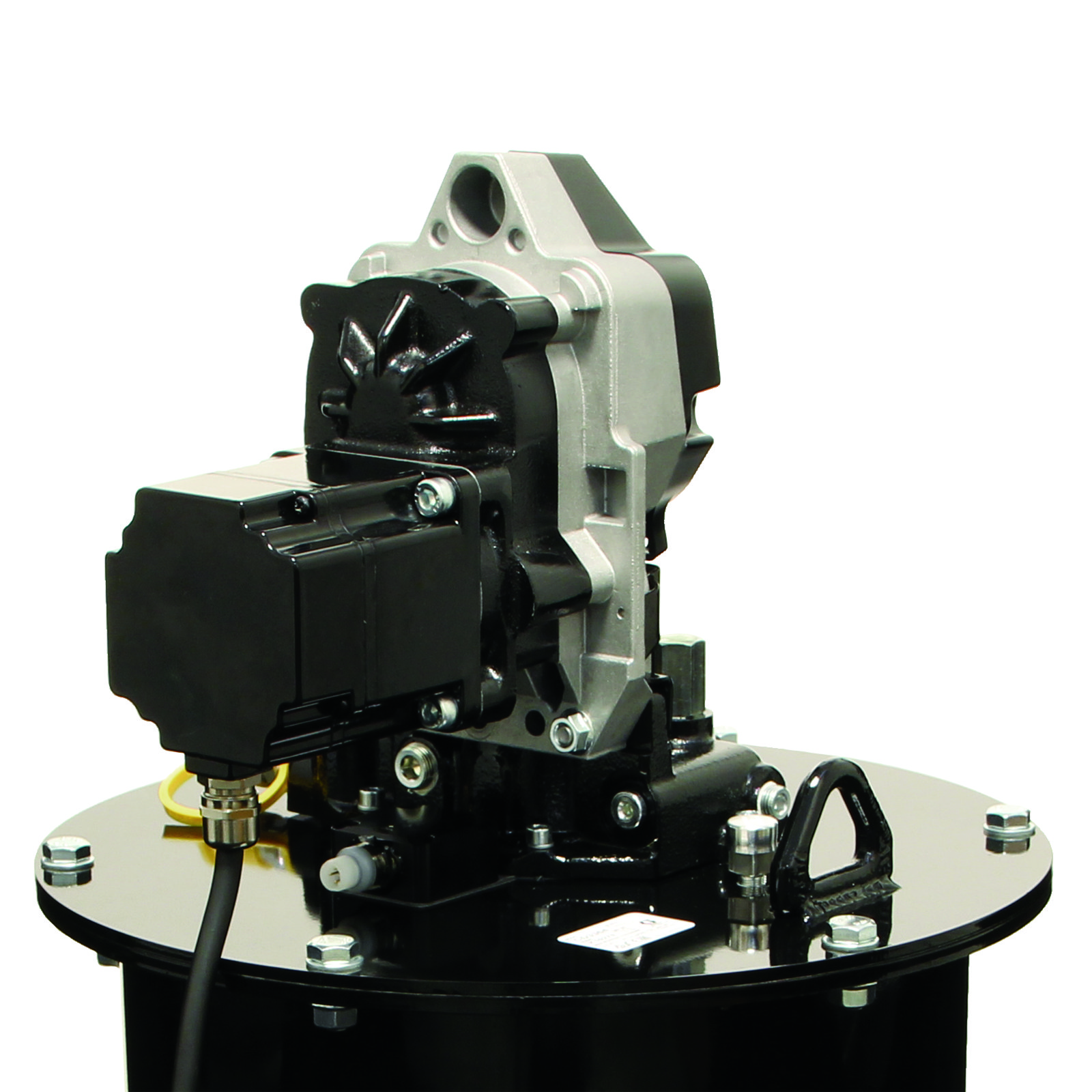

- Intelligent drive train - 24 VDC, brushless motor and maintenance-free gear drive ensure timely lubrication even at -40 °C.
- Exceptional robustness - metal construction ensures reliable operation even in the most extreme working environments.

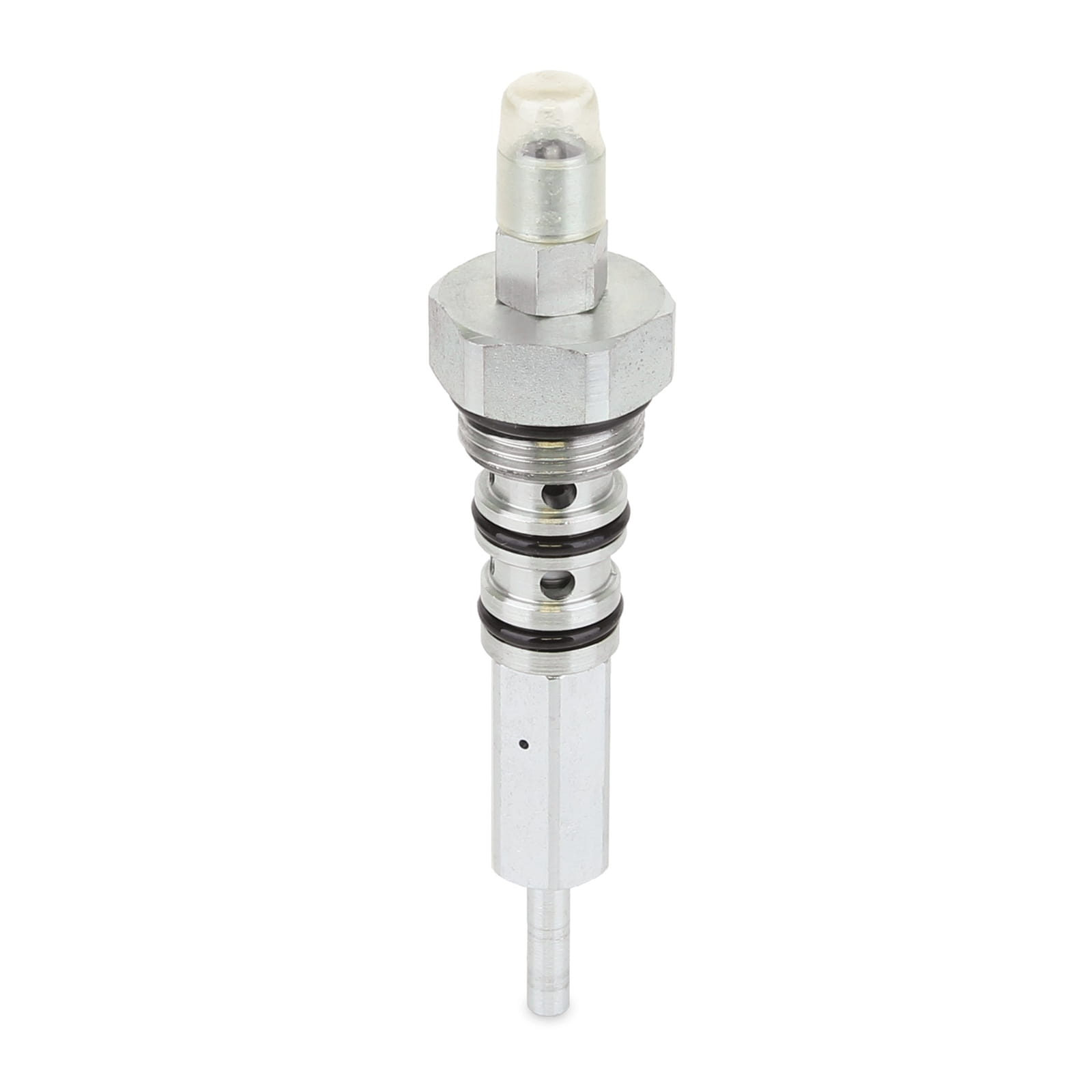

- Integrated auto-fill shut-off - this option allows single person refilling from the ground, with the machine switched off, without the need to climb or worry about spillages.
| Application: | Machines in manufacturing plants, off-road vehicles |
|---|---|
| Authorisations: | CE;EAC;RCM |
| Compatible dosing system: | Progressive system |
| Compatible material: | Fat |
| Component technology: | Brushless Electric Motor;Shovel-loading pump tube |
| Energy type: | Electric |
| Gender of the material outlet thread: | Internal thread |
| IP dimensioning: | IP69K |
| Input voltage (V dc): | 24 |
| Low level switching capacity (VDC): | 24 |
| Material outlet thread type: | NPT |
| Maximum NLGI grade: | 2 |
| Maximum cST degree (cST): | NLGI #2 |
| Maximum continuous double stroke rate (DH/min): | 64 |
| Maximum delivery rate (L/min): | 0.074 |
| Maximum double stroke rate (strokes/min): | 64 |
| Maximum filling inlet pressure (psi): | 500 |
| Maximum intermittent double stroke rate (CPM): | 64 |
| Maximum material feed pressure (psi): | 3500 |
| Maximum number of cycles (DH/min): | 64 |
| Maximum operating pressure (MPa): | 24.1 |
| Maximum operating pressure (kPa): | 24100 |
| Maximum operating pressure (psi): | 3500 |
| Maximum operating temperature (°C): | 149 |
| Maximum voltage (V dc): | 30 |
| Minimum operating temperature (°C): | -40 |
| Minimum voltage (V dc): | 18 |
| Model: | Dyna Star |
| Motor type: | Brushless, DC |
| Neck seal type: | Hythan 181 |
| Noise pressure level, (dB(A)): | 70 |
| Number of outlets: | 2 |
| Number of pump elements: | 1 |
| Output per cycle (cm³): | 1 |
| Permissible material outlet pressure (bar): | 241 |
| Permissible operating pressure (bar): | 241 |
| Power connection type: | German DT04-2P housing |
| Reservoir material: | Steel |
| Reservoir size (L): | 30 |
| Sealing material: | Buna-N |
| Size of the material outlet opening (inches): | 3/8, 1/4 |
| Sub pump type: | Integrated bucket loading |
| Switching current (A), low level: | 0.2 |
| Tension: | 24 |
| Total depth (cm): | 39.62 |
| Total depth (mm): | 396.2 |
| Total height (cm): | 72.14 |
| Total height (mm): | 721.4 |
| Total width (cm): | 38.1 |
| Total width (mm): | 381 |
| Type: | Compact electric piston pump |
| Voltage (V): | 24 |
| Weight (kg): | 37.6 |
| Wetted material: | Steel, Buna-N, Acetal, Lubrithan, Polyurethane, Brass, Polyethylene |
More information
- Product number: 1031209
- Manufacturer: Graco
- EAN: 00769946179224
