Manufacturer no.: CM1159

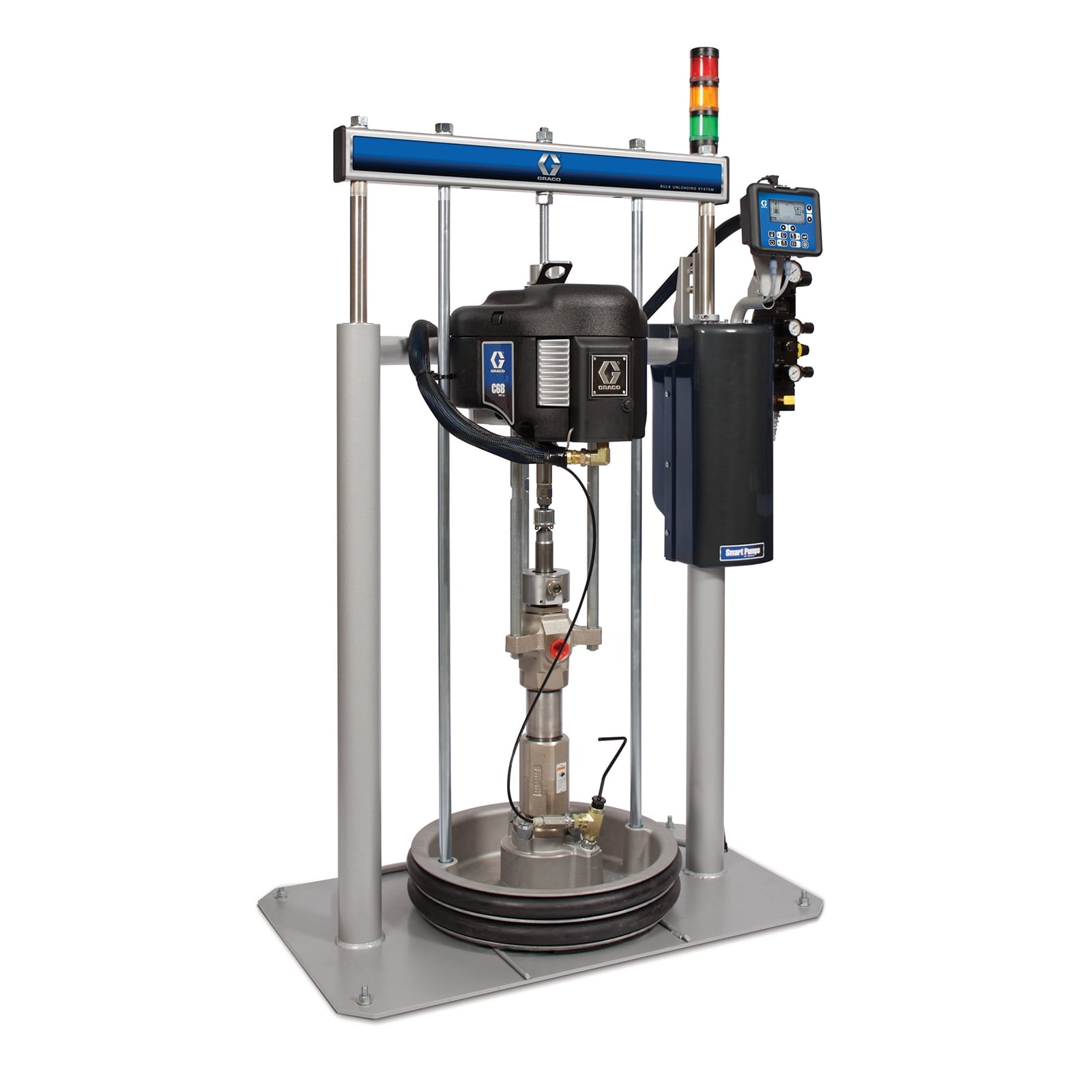

40:1 ratio 200 L 3.0 RAM feeder

€15,183.57*

% €16,870.63* (10% saved)

Prices include VAT plus shipping costs

€12,759.30*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

Graco feeding systems reliably deliver single-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to the measuring and dosing systems.

Bulk unloader for ambient temperature sealants, adhesives and other medium- to high-viscosity materials

For large drums up to 200 litres (55 gallons)
Graco D200 - For high-volume applications on the manufacturing plant floor
The industry's first controllers that give you instant, critical information at your fingertips
Quick placement of drums or pails
Plate scrapers can be replaced in seconds
Quick-connect, turnbuckle mounting and cartridge packings allow pump service without removing the pump from the ram
High-quality, durable parts reduce maintenance time and maximise uptime

Ambient/hot-melting/hot-melting:	Not heated
Application:	Bonding, sealing, sealing, potting, encapsulation, injection molding, spraying, liquid conveying, unloading, underfilling
Container type:	barrel
Energy type:	Pneumatic
Material container volume (litres):	200
Material follower plate:	Normal steel
Maximum air supply pressure (bar):	10.34
Maximum air supply pressure (kPa):	1034
Maximum air supply pressure (kg/cm²):	10.55
Maximum delivery rate (L/min):	6.1
Maximum height (cm):	259.9
Maximum height (m):	2.6
Maximum height (mm):	2599
Maximum inlet air pressure (psi):	150
Maximum material pressure (bar):	275.8
Maximum material pressure (kPa):	27580
Maximum material pressure (psi):	4000
Maximum operating pressure (MPa):	28
Maximum operating pressure (kPa):	28000
Maximum operating pressure (psi):	4000
Maximum operating temperature (°C):	49
Minimum height (cm):	164.6
Minimum height (m):	1.65
Minimum height (mm):	1646
Model:	Check Mate
Permissible operating pressure (bar):	280
Pump type:	Suction piston
Series:	D200
Total depth (cm):	63.5
Total depth (mm):	635
Total width (cm):	106.7
Total width (mm):	1067
Transmission ratio of the pump:	40:1
Type:	Feeding device
Wetted material:	Alloy Steel, Stainless Steel, Acetal, Carbon Filled PTFE, Mild Steel, Ductile Iron, Electroless Nickel Plating, Zinc Plated, Chrome Plating, High Molecular Weight Polyethylene, EPDM, Aluminum, Galvanized Carbon Steel

More information

Product number: 1032899
Manufacturer: Graco
EAN: 00633955253063
Weight: 239.184 kg
Length: 732 mm
Width: 1311 mm
Height: 1798 mm

Technical details

Specifications

Operating specifications

UPC product	6 3 3955253063
Division	IPD
Price Block	2 22
Country of Origin	US
Unit	EA
Height	179.8 CM
Length	73.2 CM
Width	131.1 CM
Volume	1 .725 m³
Shipping weight	239.18 KG

Technical

Ambient/Warm Melt/Hot Melt	Ambi ent
Container Type	D rum
Material container volume (gal)	52. 8
Material Container Volume (l)	2 00
Maximum air inlet pressure (bar)	10. 34
Maximum air inlet pressure (kg/cm²)	10. 55
Maximum air inlet pressure (kPa)	1 0 34
Maximum air inlet pressure (psi)	150
Maximum flow rate (L/min)	6. 1
Maximum fluid pressure (bar)	275. 8
Maximum fluid pressure (kPa)	2 7 580
Maximum fluid pressure (psi)	4 0 00
Maximum height (cm)	259. 9
Maximum height (ft)	8. 53
Maximum height (in)	102. 3
Maximum height (m)	2. 6
Maximum height (mm)	2 5 99
Maximum operating temperature (°C)	4 9
Maximum operating temperature (°F)	120
Maximum working pressure (bar)	2 80
Maximum working pressure (kPa)	2 8 000
Maximum working pressure (MPa)	2 8
Maximum working pressure (psi)	4 0 00
Minimum Height (cm)	164. 6
Minimum height (ft)	5. 4
Minimum height (in)	64. 8
Minimum height (m)	1. 65
Minimum height (mm)	1 6 46
Model	Check-Mate
Overall Depth (cm)	63. 5
Overall depth (in)	25
Overall depth (mm)	635
Overall Width (cm)	106. 7
Overall width (in)	4 2
Overall width (mm)	1067
Ram material	Carbon steel
Series	D200
