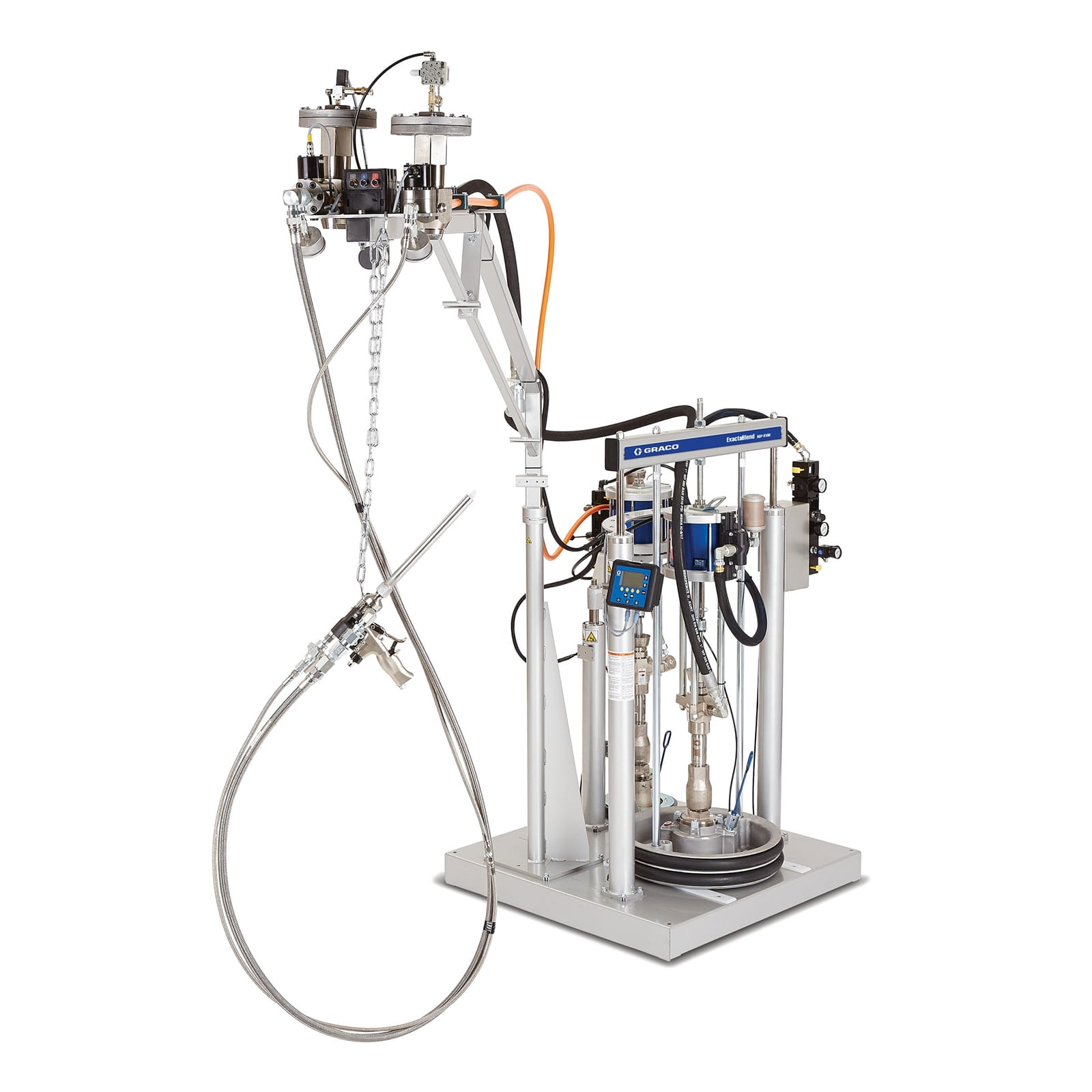

200/19 l (55/5 Gal) AGP-P100 polysulphide machine (boom not included)
Price on request
Ready for shipping in 5-8 Werktage
The ExactaBlend AGP (Advanced Glazing Proportioner) from Graco ensures the precise dosing of two-component sealants and adhesives in the desired mixing ratio for glass façades, insulating glazing and similar applications. The ExactaBlend AGP with variable mixing ratio offers advanced technology at an affordable price.
Precise application of silicone materials in insulating glass or structural glazing applications is critical for superior adhesion, durability and leak-free performance. Advanced pump technology results in better and more consistent bead application and less rework.
- Real-time mix ratio control means less material loss and more gain
- Automatic switch-off as soon as the mixing ratio is no longer maintained
- Less material loss and less reworking save costs
- Optimum mixing to ensure quality
- Significantly fewer faulty seals in insulating glass
- This results in higher quality end products
- Simple operation
- Quick and uncomplicated adjustment - the operator simply enters the ratio
- Mixing ratios can be changed easily
- Less material loss
- The base material is rinsed out at the touch of a button: quick, clean and simple
- Optional data download with records of mixing ratios, flow rate and material consumption
- Information on the consumption of materials A and B
- Flow rate
- Alarms
- Pressure ratio
| Maximum operating pressure (MPa): | 21 |
|---|---|
| Maximum operating pressure (kPa): | 20700 |
| Maximum operating pressure (psi): | 3000 |
| Minimum delivery rate (kg/min): | 1 |
| Model: | Exactablend |
| Permissible operating pressure (bar): | 207 |
| Series: | AGP |
| Sex of the hardener inlet thread: | Internal thread |
| Size of the hardener inlet (inch): | 1/4 |
| System ratio: | 6:1 to 14:1 |
| Type: | Dosing system |
| Type of hardener inlet thread: | NPT |
- Product number: 1036074
- Manufacturer: Graco
- EAN: 00633955682177
- Weight: 417.666 kg
