Manufacturer no.: CM9A2C

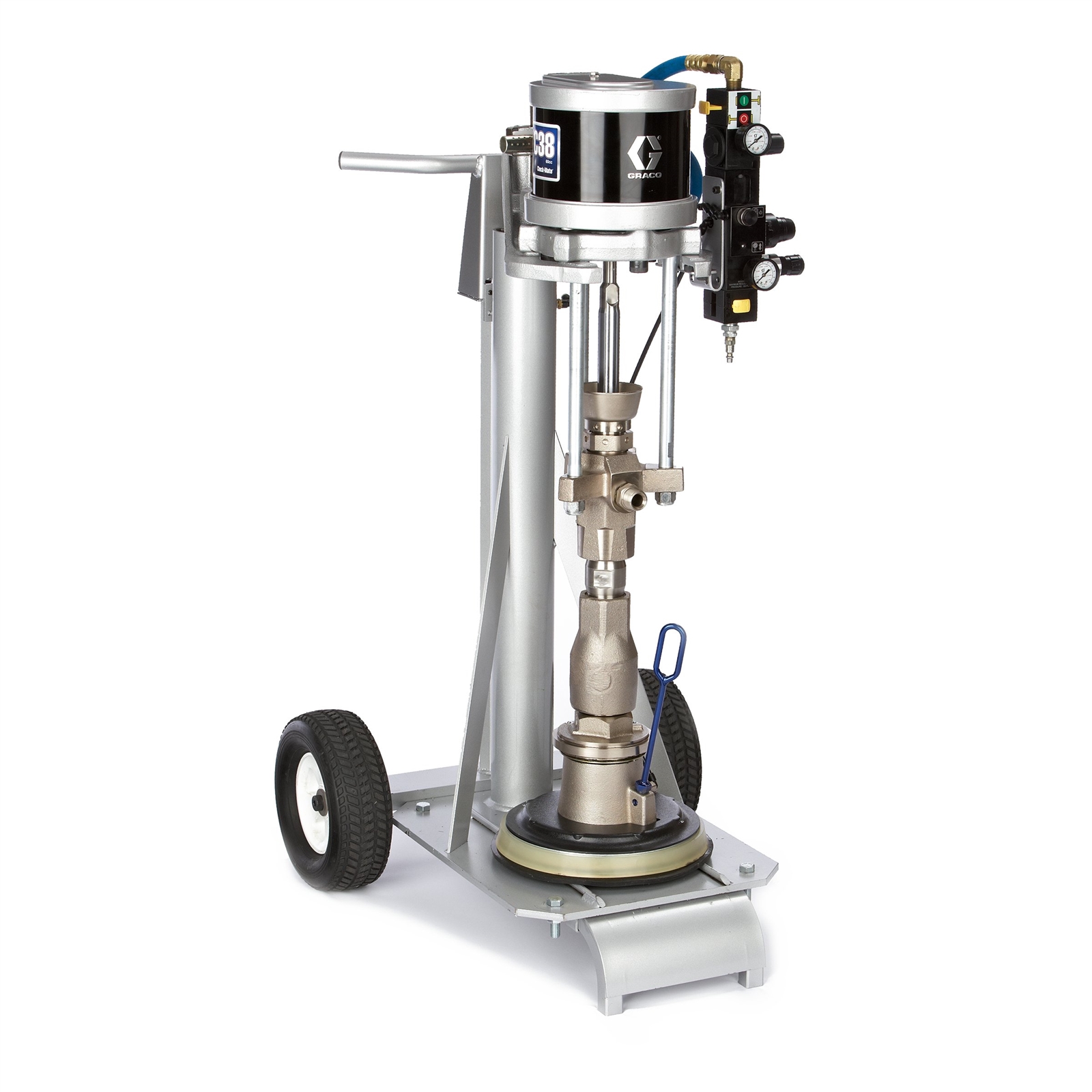

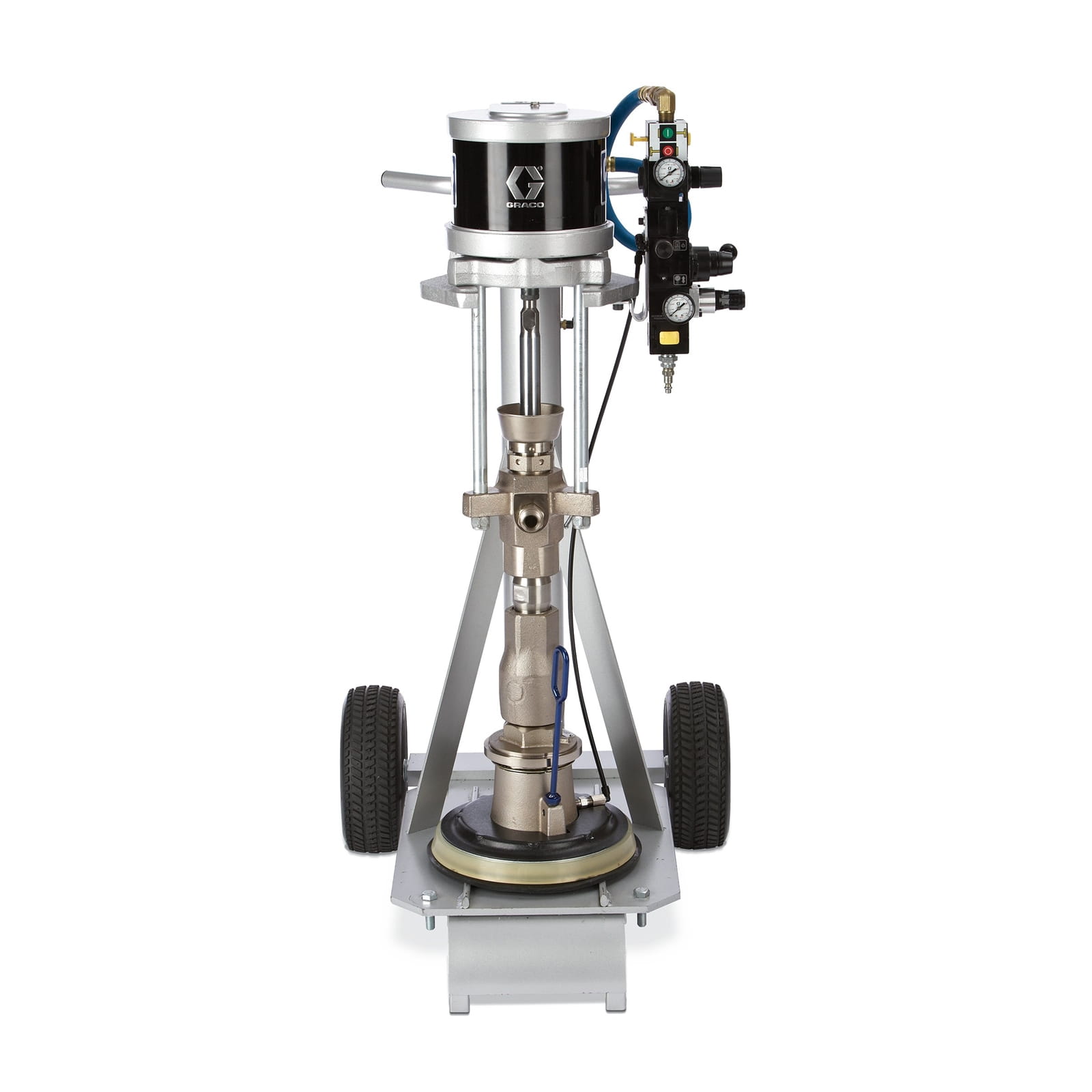

20 litre L20C feeder on trolley, ratio 61:1

€10,482.95*

% €11,647.72* (10% saved)

Prices include VAT plus shipping costs

€8,809.20*

Price excl. VAT

Ready for shipping in 5-8 Werktage

14 days free exchange

Free shipping within Germany

Also interesting

Product information

Graco feeders reliably deliver single component sealants, adhesives and other medium to high viscosity materials from pails or drums to dispensing systems.

Bulk dispenser for ambient temperature sealants, adhesives and other medium to high viscosity materials

20 litre (5 gallon) pail sizes offer the same proven technologies as the larger systems, but with smaller NXT air motors.
Graco S20c - Equivalent to S20 but with a chassis
Industry-first controls give you instant and critical information at the touch of a button
Quick bucket placement
Plate scrapers can be replaced in seconds
Quick disconnect, turnbuckle attachment and pump cartridge packings allow pump maintenance without removing it from the ram
High-quality, robust parts reduce maintenance time and maximise uptime

Ambient/hot-melting/hot-melting:	Surroundings
Application:	Bonding, sealing, sealing, potting, encapsulation, injection molding, spraying, liquid conveying, unloading, underfilling
Container type:	Bucket
Energy type:	Pneumatic
Material container volume (litres):	20
Material follower plate:	Normal steel
Maximum air supply pressure (bar):	8.62
Maximum air supply pressure (kPa):	862
Maximum air supply pressure (kg/cm²):	8.79
Maximum delivery rate (L/min):	3.4
Maximum height (cm):	228.6
Maximum height (m):	2.29
Maximum height (mm):	2286
Maximum inlet air pressure (psi):	125
Maximum material pressure (bar):	420.6
Maximum material pressure (kPa):	42060
Maximum material pressure (psi):	6100
Maximum operating pressure (MPa):	42.1
Maximum operating pressure (kPa):	42100
Maximum operating pressure (psi):	6100
Maximum operating temperature (°C):	49
Minimum height (cm):	165.1
Minimum height (m):	1.65
Minimum height (mm):	1651
Model:	Check Mate
Permissible operating pressure (bar):	421
Pump type:	Suction piston
Series:	S20c
Total depth (cm):	66.1
Total depth (mm):	661
Total width (cm):	56.2
Total width (mm):	562
Transmission ratio of the pump:	61:1
Type:	Feeding device
