Manufacturer no.: CM314B

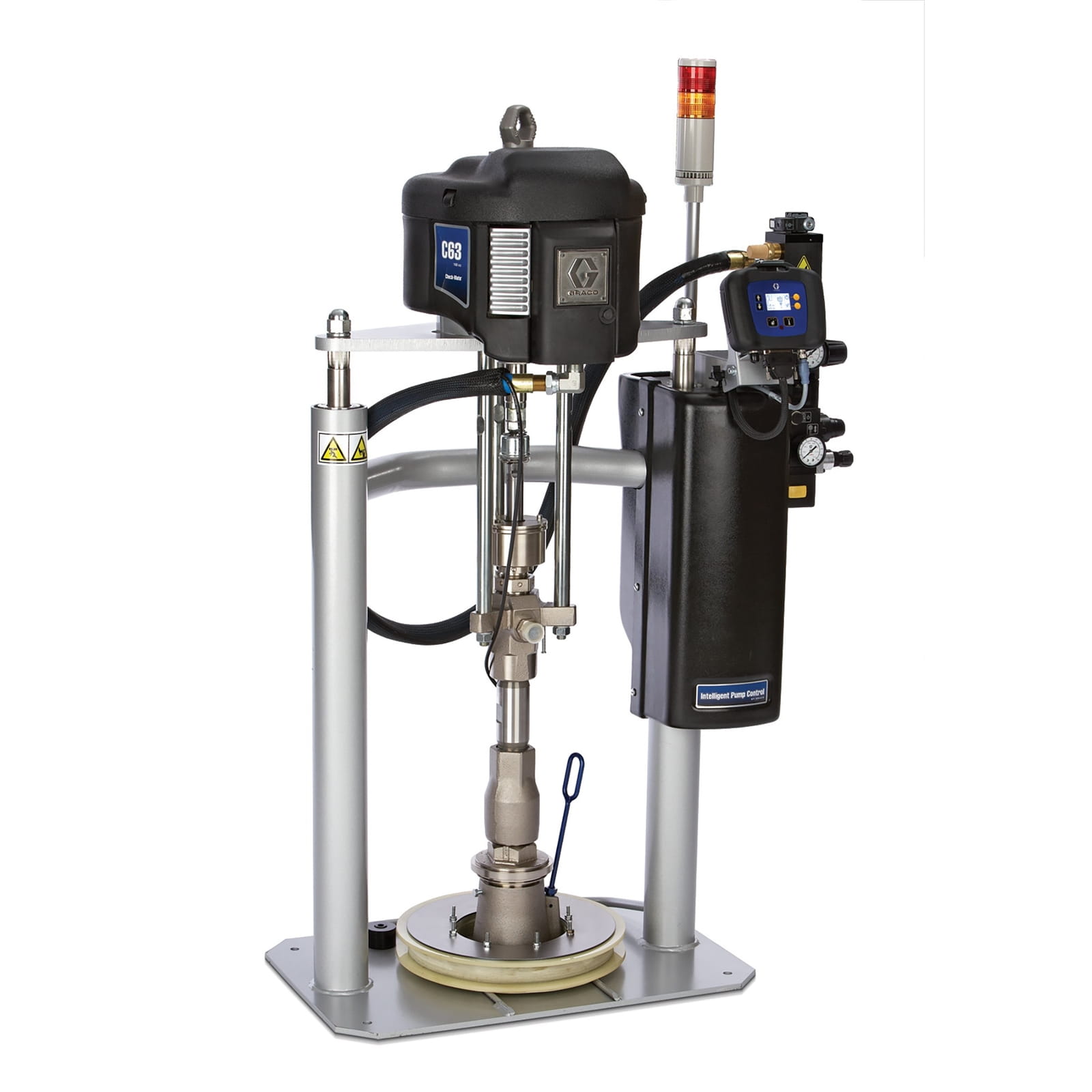

20 litre D60 feeder, ratio 29:1

€17,043.89*

% €18,937.66* (10% saved)

Prices include VAT plus shipping costs

€14,322.60*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

Graco feeders reliably deliver single component sealants, adhesives and other medium to high viscosity materials from pails or drums to dispensing systems.

Discharge unit for large quantities of ambient temperature sealants, adhesives and other medium to high viscosity materials

60 litre (16 gallon) pail sizes offer the same proven technologies as the larger systems, but with smaller NXT air motors.
Graco D60 - Offers higher output and 60 litre bucket capacity
Industry-first controls give you immediate and critical information at the touch of a button
Quick bucket placement
Plate scrapers can be replaced in seconds
Quick disconnect, turnbuckle attachment and pump cartridge packings allow pump maintenance without removing it from the ram
High-quality, robust parts reduce maintenance time and maximise uptime

Ambient/hot-melting/hot-melting:	Surroundings
Application:	Bonding, sealing, sealing, potting, encapsulation, injection molding, spraying, liquid conveying, unloading, underfilling
Container type:	Bucket
Control console material:	n.a.
Energy type:	Pneumatic
Material container volume (litres):	20
Material follower plate:	Normal steel
Maximum air supply pressure (bar):	10.34
Maximum air supply pressure (kPa):	1034
Maximum air supply pressure (kg/cm²):	10.55
Maximum delivery rate (L/min):	15.1
Maximum height (cm):	226.06
Maximum height (m):	2.26
Maximum height (mm):	2260.6
Maximum inlet air pressure (psi):	150
Maximum material pressure (bar):	200
Maximum material pressure (kPa):	20000
Maximum material pressure (psi):	2900
Maximum operating pressure (MPa):	20.3
Maximum operating pressure (kPa):	20300
Maximum operating pressure (psi):	2900
Maximum operating temperature (°C):	49
Minimum height (cm):	149.86
Minimum height (m):	1.5
Minimum height (mm):	1498.6
Model:	Check Mate
Permissible operating pressure (bar):	203
Pump type:	Suction piston
Series:	D60
Total depth (cm):	45.72
Total depth (mm):	457.2
Total width (cm):	71.12
Total width (mm):	711.2
Transmission ratio of the pump:	29:1
Type:	Feeding device
Wetted material:	Alloy Steel, Stainless Steel, Acetal, Carbon Filled PTFE, Mild Steel, Nodular Iron, Electroless Nickel Plating, Zinc Plated, Chrome Plating, PTFE, UHMWPE, Polyurethane, Nitrile Rubber, Mild Steel, Polyethylene, Galvanized Carbon Steel, Buna-N

More information

Product number: 1034775
Manufacturer: Graco
EAN: 00633955494084
Weight: 182.106 kg
Length: 760 mm
Width: 1160 mm
Height: 1600 mm

Technical details

Specifications

Operating specifications

UPC product	6 3 3955494084
Division	IPD
Price Block	2 22
Country of Origin	US
Unit	EA
Height	160 CM
Length	76 CM
Width	116 cm
Volume	1 .41056 m³
Shipping weight	182.106 KG
