Manufacturer no.:
T456CN3S

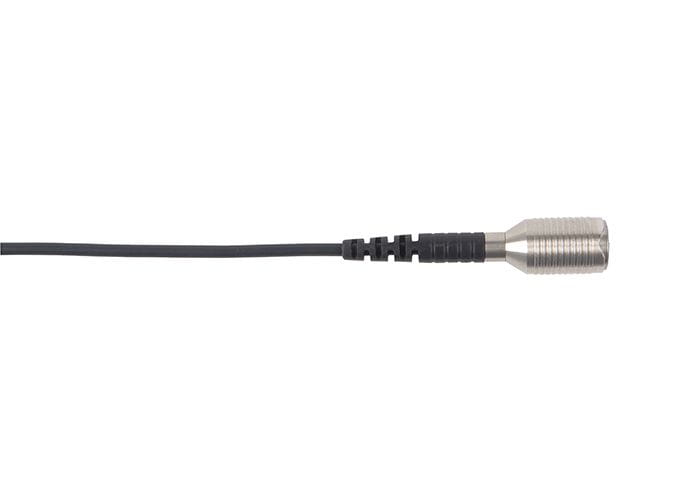

Elcometer 456: N3 standard probe, 0-13mm/0-500mils
€1,050.18*
Ready for shipping in 1-3 days
Also interesting
Product information
Probe range for coating thickness gauges with separate probe
All Elcometer 456 probes are fully interchangeable to meet your specific requirements and are available in a range of styles and scale ranges.
Choosing the right probe for your coating thickness gauges:
Iron probes (F)
- Ferrous probes measure non-magnetic coatings on ferromagnetic substrates.
- Elcometer 456 ferrous gauges are compatible with any ferrous probe.
Non-ferrous metal probes (N)
- Non-ferrous probes measure non-conductive coatings on non-ferrous substrates.
- Elcometer 456 non-ferrous gauges are compatible with any non-ferrous probe.
FNF combination probes
- FNF combination probes measure on both ferrous and non-ferrous metals with automatic substrate detection.
- Elcometer 456 FNF gauges are compatible with all ferrous, non-ferrous and FNF combination probes.
High temperature
- Elcometer probes have a maximum operating temperature of 80°C (176°F)*.
- Separate Elcometer iron probes have a maximum operating temperature of 150°C (300°F)*.
- High temperature PINIP™ have a maximum operating temperature of 250°C (480°F)*.
Selecting the right probe for your coating thickness gauges:
More information
- Product number: 1028228
- Manufacturer: Elcometer Instruments GmbH
Technical details
- Substratsonde: Nichteisenmetallsonden (N)
- Messbereich: 0-13mm, 0-500mils
- Genauigkeit: ±1-3% oder ±50μm, ±1-3% oder ±2,0mils
- Sondenlänge: 45mm (1,77”)
- Arbeitshöhe: 170mm (6.69”)
- Minimaler Probendurchmesser: 35mm (1,38”)
