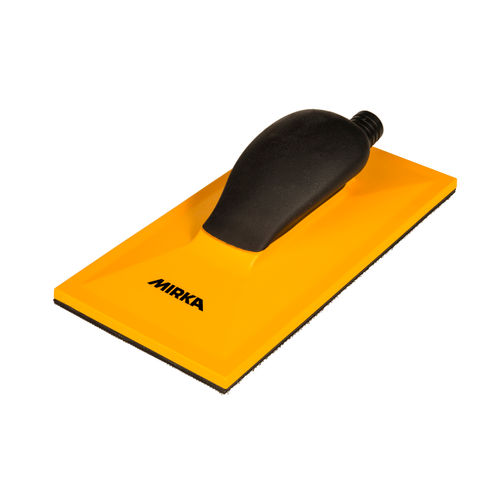

Mirka Handblock 115×230 mm Grip 32L – Precision in Your Hand
The Mirka Handblock 115×230 mm Grip 32L is designed for professional hand sanding. With its ergonomic design, efficient dust extraction, and perfect grip interface for abrasive sheets, it ensures consistent surface finishes even on large panels. This guide covers application, setup, and care.
Product Overview
| Feature | Value |
|---|---|
| Dimensions | 115 × 230 mm |
| Perforation | 32 L – optimized for dust extraction |
| Body Material | ABS plastic with NR-SBR foam core |
| Handle | Ergonomic rubber handle (Shore 65±10) |
| Compatible with | Mirka Abranet & Grip abrasive sheets |
PU Density
350 ± 50 kg/m³
350 ± 50 kg/m³
Hardness
65 ± 10 Shore 00
65 ± 10 Shore 00
Storage Temp.
20 °C (recommended)
20 °C (recommended)
Pro Tip: Always connect your sanding block to an efficient dust extraction system. It extends the life of abrasives and ensures smoother finishes.
Recommended Base Settings (Guideline Values)
- Surface prep: Grit P120 – P240
- Intermediate sanding: Grit P320 – P400
- Fine sanding (for coatings): Grit P600 – P800
- Apply light pressure – let the foam do the work
- Use active dust extraction with the 32-hole system
Professional Workflow (6 Steps)
- Connect the block to the extraction hose (Ø 20 mm fitting).
- Attach the matching Grip 32L abrasive sheet and press evenly.
- Sand with light, overlapping strokes using consistent pressure.
- Blow off the surface and check the abrasive regularly.
- For fine coatings, increase grit and reduce pressure.
- After use, store the block flat and clean of dust.
Troubleshooting
| Issue | Cause | Solution |
|---|---|---|
| Uneven sanding pattern | Too much pressure | Use light pressure and consistent strokes |
| Abrasive detaches | Dust between block and pad | Clean the grip surface and reattach |
| Excessive dust | Weak extraction flow | Check hose and increase airflow |
| Scratches after sanding | Grit too coarse | Switch to finer grit > P400 |
Maintenance & Care
- Blow off or vacuum the block after every use
- Store flat and away from direct sunlight
- Avoid aggressive cleaning agents
- Replace worn grip surfaces as needed
- Inspect joints and seals regularly
FAQ
- Does this block fit all 115×230 mm abrasive sheets?
Yes, it fits all Mirka Grip systems with 32-hole perforation. - How should I clean the block?
Use compressed air or a soft cloth – no solvents. - Can I use it without dust extraction?
Yes, but dust buildup will increase – extraction is recommended. - How should I store it?
Flat, around 20 °C, away from heat sources. - When should I replace the abrasive?
When sanding performance or dust suction decreases.
Values based on manufacturer data (Mirka Ltd, TDS Version 4 / 27.07.2022) and real-world application experience.
