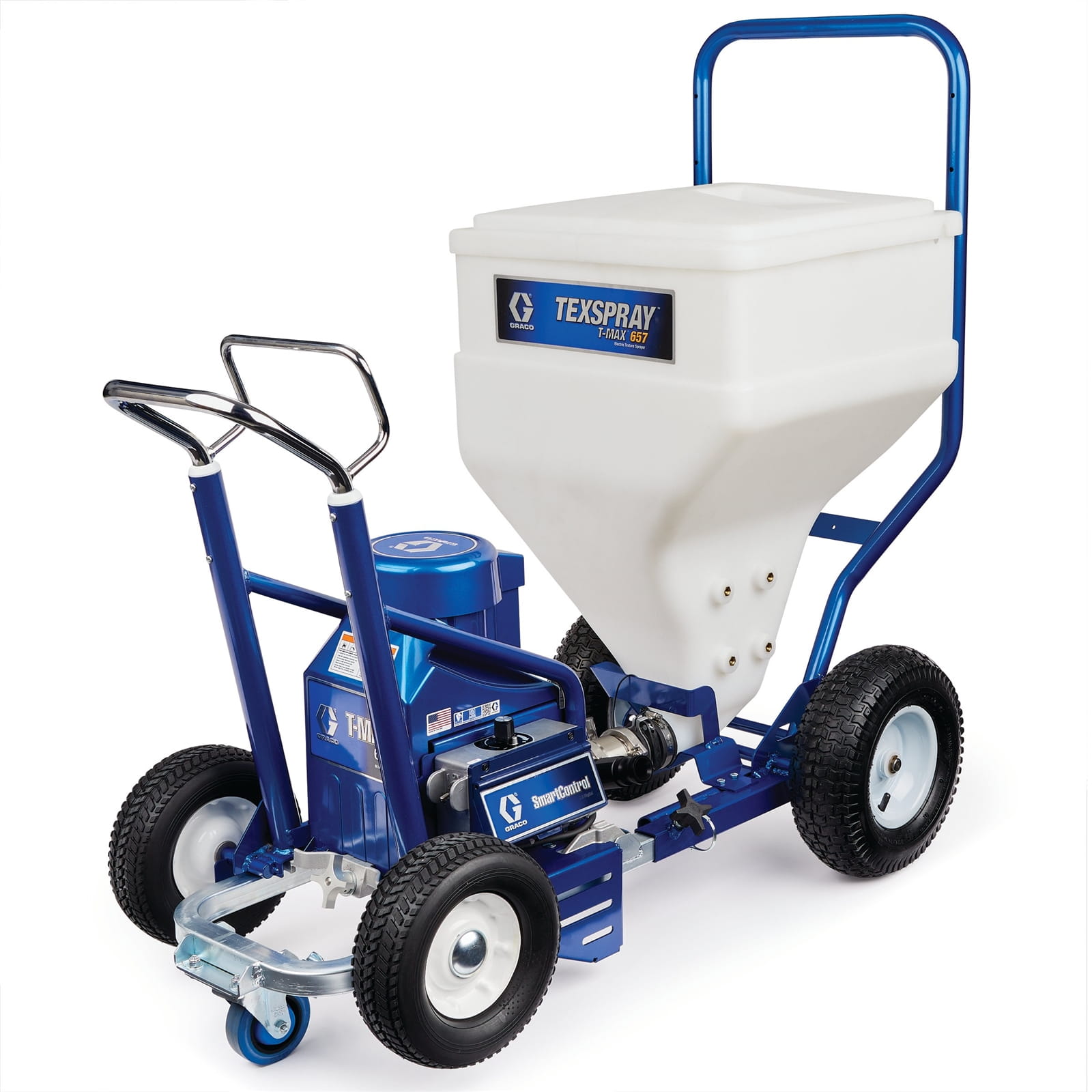

TexSpray T-MAX 657, 230V, IT - DK - CH
€11,685.80*
Ready for shipping in 5-8 Werktage
The T-Max™ is no ordinary sprayer, but a complete solution for the application of fillers and plasters. The first choice for interior plaster and decorative materials. The TexSpray T-MAX 657 is specially designed for the application of most interior plasters and fillers. The larger motor, the higher-capacity tank and the longer hose of the T-MAX 657 provide more material output, more reach and longer autonomy compared to the T-MAX 605. This results in > 20% higher productivity.
Using T-MAX 657 in combination with an external compressor and an air-assisted applicator makes it possible to spray decorative putties with aggregates up to 1mm. Advantages:• A very smooth finish: Significantly less application, up to 30% savings compared to manual work• Up to 30 metres of hose possible: Spray a complete villa without moving the sprayer or the material• Spray airless or air-assisted: Almost all fillers can be applied without a compressor. Spray decorative materials using an external compressor
- The best from Graco in a modular design Modularity in many different places of use, on different floors, and with the pump at the place of use. The brand new T-MAX from Graco offers you an unprecedented modular, versatile design without the use of tools.
- Small, compact and manoeuvrable
- Balanced design for easy driving – even when full
- Lockable swivelling front wheel
- Quick-access piston pump
- T-MAX pumps can be taken apart in seconds, giving you access to all the pump parts.
- No tools are required.
- Material funnel
- 95-litre tank
- Structure with steeply rising side surfaces for optimal material flow
- Optional installation of a Vibra-Flo™ system from Graco
- Optional installation of a Graco sack press
- Sturdy, modular frame
- Steel construction stands up to the toughest jobsite treatment
- Easily connect and disconnect without tools
- Small, compact, balanced design for easy manoeuvring
- Quick and Clean lance for clean opening and closing to avoid "material spitting". The horizontal design ensures optimal material flow and prevents blockages. Very light and easy to use
- Extremely lightweight and flexible hose. For larger jobs: the Camlock™ quick-connect system lets you safely extend hose length up to 30 m by hand, without the use of additional tools. This means you can completely spray a two-storey house without moving the T-Max™.
- SMARTCONTROL™ 3.0• Delivers smooth, consistent material flow• Offers airless or flow mode• Display shows pressure, material usage in litres/gallons and more
- Toolbox
- Integrated storage compartment
- Keeps your nozzles and other tools safe
- Material scraper
- For straight and curved surfaces, enables cleaning of the container and complete removal of material from a pail
| Compatible material: | Filler, decorative painting |
|---|---|
| Convertible: | Not convertible |
| Frame configuration: | Chassis with integrated material container |
| Frequency (Hz): | 50 |
| Hose diameter (inch): | 1 |
| Includes: | All devices are delivered complete and ready to spray: |
| Inner diameter of material hose (inch): | 1 |
| Material outlet size (mm): | 254,000 |
| Material outlet thread type: | Camlock |
| Maximum delivery rate (L/min): | 7.2 |
| Maximum nozzle size (inch): | 61 |
| Maximum nozzle size 1 gun (inch): | 61 |
| Maximum operating pressure (MPa): | 6.5 |
| Maximum operating pressure (kPa): | 6500 |
| Maximum operating pressure (kg/cm²): | 6.5 |
| Maximum operating pressure (psi): | 940 |
| Maximum sound pressure level (dB(A)): | 82.4 |
| Minimum generator output (W): | 7000 |
| Minimum generator output (kW): | 0 |
| Model: | TexSpray |
| Motor size (kW): | 0.9 |
| Motor type: | Brushless, DC |
| Number of guns: | 1 |
| Permissible operating overpressure (psi): | 940 |
| Permissible operating pressure (bar): | 65 |
| Phases: | 1 |
| Pressure control type: | SmartControl 3.0 |
| Pump rod type: | Hard chrome plated |
| Pump sleeve material: | Hard chrome plated |
| Pump type: | lower pump |
| Rated power (kW): | 0.9 |
| Series: | T-MAX 657 |
| Size of the material outlet opening (inches): | 1 |
| Spray gun type: | T-Max lance |
| Spraying technology: | Airless, airless with air atomization |
| Supply voltage: | Electric |
| Total height (cm): | 117 |
| Total height (mm): | 11,684,000 |
| Total length (cm): | 117 |
| Total length (mm): | 1168.4 |
| Total width (cm): | 58 |
| Total width (mm): | 5,842,000 |
| Type: | Airless sprayer |
| Voltage (V): | 230 |
| Weight (kg): | 74 |
| Wetted material: | Buna-N, Aluminum, Brass, Polyethylene, Neoprene, Stainless Steel, Chrome Plated Carbon Steel, Nickel Plated Carbon Steel, Fluoroelastomer, Nickel Plated Iron, Wool Felt, Tungsten Carbide, PTFE |
- Product number: 1032015
- Manufacturer: Graco
- EAN: 00755652887683
- Weight: 113.851 kg
- Length: 1250 mm
- Width: 640 mm
- Height: 1300 mm
