Manufacturer no.:
262614

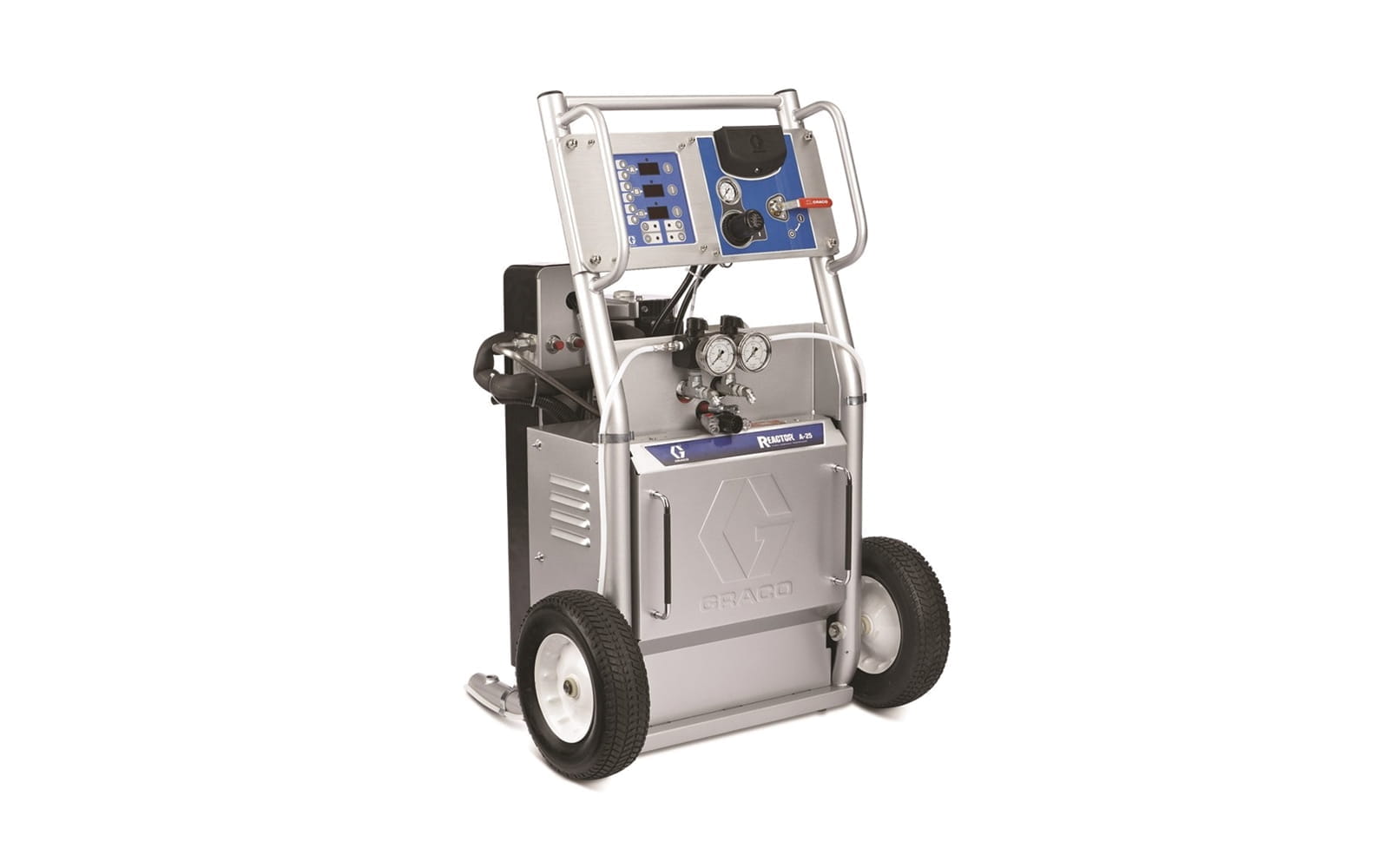

Reactor A-25 dosing unit with wheels, DataTrak
€19,129.49*
% €22,505.28* (15% saved)Ready for shipping in 5-8 Werktage
Also interesting
Product information
The Reactor A-25 is a foam dispenser designed by Graco to provide the reliability needed for the job. It features constant temperature control, even when spraying at maximum flow rates, resulting in better quality foam.
- Maintains temperature settings for better yields
- Ensures consistent pressure for a uniform spray pattern
- Easy to maintain material section reduces maintenance and increases productivity
- Best choice for affordability and durability
| Air inlet size (inches): | 1/2 |
|---|---|
| Air inlet thread type: | NPT |
| Application: | Spray foam |
| Applicator type: | Hand- |
| Compatible material: | Multicomponent materials |
| Component A, inlet size (inch): | 3/4 |
| Component A, inlet size (mm): | 19.05 |
| Component A, thread gender: | Internal thread |
| Component A, thread type: | NPT |
| Component B, inlet size (inch): | 3/4 |
| Component B, inlet size (mm): | 19.05 |
| Component B, thread gender: | Internal thread |
| Component B, thread type: | NPT |
| Component type: | Two-component |
| Frequency (Hz): | 50/60 |
| Gender of the air inlet thread: | Internal thread |
| Gun type: | No gun |
| Includes: | Dispenser, Heated Hose, Wheels, DataTrak |
| Material application.: | Polyurethane foam |
| Maximum air inlet pressure (MPa): | 0.86 |
| Maximum air supply pressure (bar): | 8.62 |
| Maximum air supply pressure (kPa): | 862 |
| Maximum conveying capacity (kg/min): | 11.34 |
| Maximum hose length (m): | 64 |
| Maximum inlet air pressure (psi): | 125 |
| Maximum material temperature (°C): | 88 |
| Maximum material viscosity (cP): | 1500 |
| Maximum mixing ratio: | 1:1 |
| Maximum operating pressure (MPa): | 13.8 |
| Maximum operating pressure (kPa): | 13800 |
| Maximum operating pressure (psi): | 2000 |
| Minimum material viscosity (cP): | 250 |
| Model: | reactor |
| Noise pressure level, (dB(A)): | 70.2 |
| Permissible operating pressure (bar): | 138 |
| Phases: | 1, 3 |
| Print type: | Low pressure |
| Product type: | multi-component |
| Rated power (W): | 9000 |
| Rated power (kW): | 9 |
| Series: | A-25 |
| Sink type: | solvent |
| Size of the air inlet (cm): | 1.27 |
| Size of the air inlet (mm): | 12.7 |
| Sound level, (dB(A)): | 80.1 |
| Supply voltage: | Air |
| System includes: | DataTrak and wheels |
| Total depth (cm): | 76.2 |
| Total depth (mm): | 762 |
| Total height (cm): | 110.5 |
| Total height (mm): | 1105 |
| Total width (cm): | 73.7 |
| Total width (mm): | 737 |
| Type: | Complete dosing device |
| Voltage (V): | 230, 400 |
| Weight (kg): | 140.6 |
| Wetted material: | Mild steel, stainless steel, chrome, aluminum, fluoroelastomer, PTFE, nylon |
More information
- Product number: 1031133
- Manufacturer: Graco
- EAN: 00633955316584
- Weight: 173.952 kg
- Length: 900 mm
- Width: 900 mm
- Height: 1300 mm
